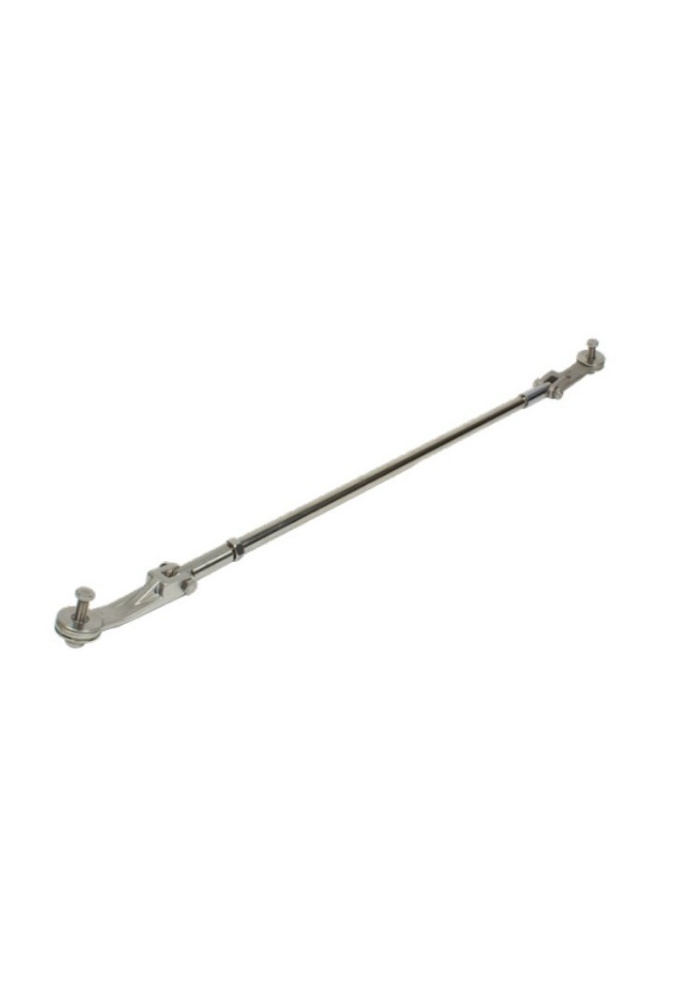

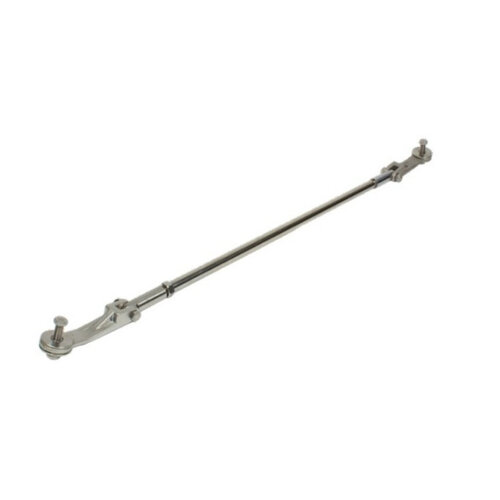

Riviera Tie Bar 500 * 750

Brand Name :
Article number:
620077600
Stock:
In stock
Delivery time:
Ordered before 16:00, delivered the next day within the Netherlands. Outside the Netherlands on request.
€--,-- * Excl. tax Excl. Shipping costs
Quantity :
+ -
  • Information
  • Reviews

Informatie over de Riviera Koppelstang 500 * 750



The outboard balanced cylinder NOT need to be fixed to the hull or support. Connect tubes as
shown in figure. Connect tiller arm to bracket using nuts and bolts as included in application kit.
Ensure that purge fittings are correctly upward.



Lubricate interior of engine tube, insert support rod (1) and sufficient plastic spacers (2) until cylinder is
centered to engine center distance. Block cylinder in position turning nut (3) until tight. Connect support rod (1) to cylinder using washer and self -locking fastener as appropriate.



IMPORTANT


The cylinder ATI2 is a cylinder to double effect for
assemblage frontal steerings.
The maximum pressure of exercise is of 80 bar and
the maximum applicable effort to this pressure is 195
Kg, the maximum volume of the cylinder is of 141 cc
