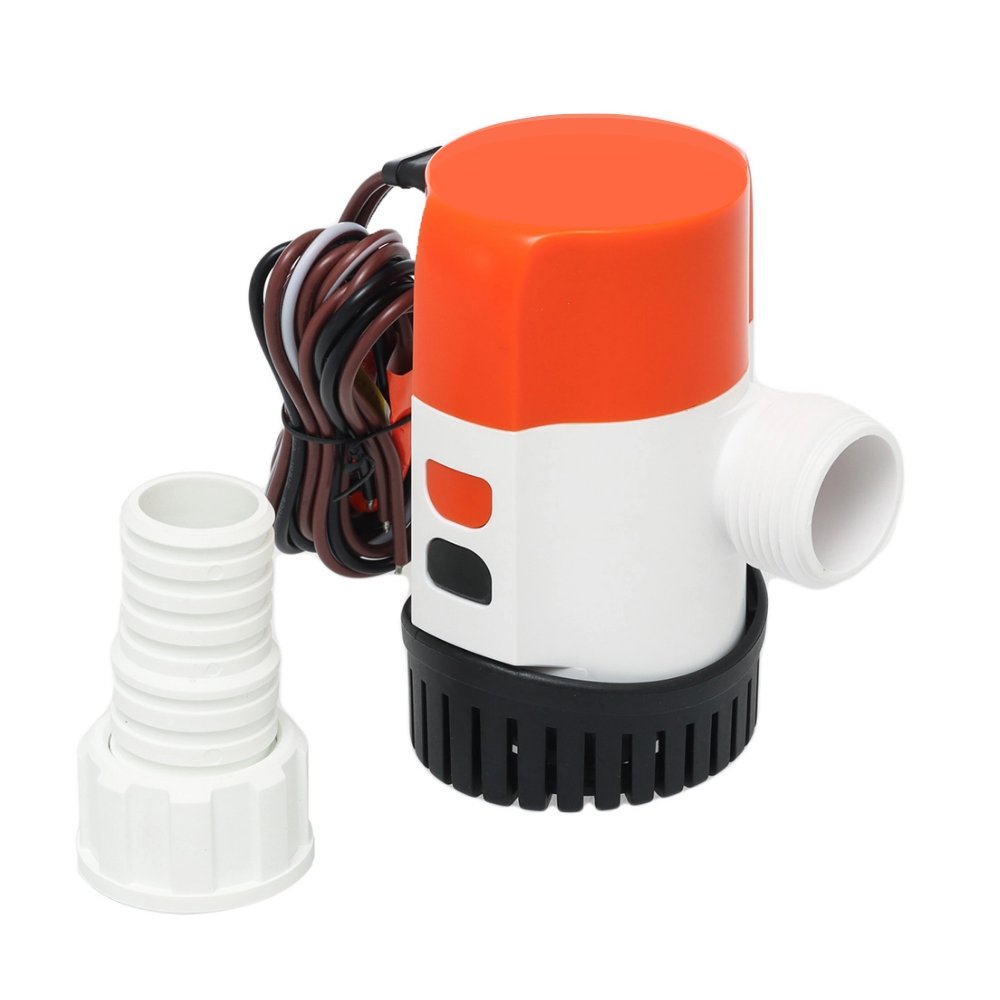

SeaFlo Manual Bilge Pump - 24 V - 800 GPH

In stock
Login for prices
Add to favorites
Article code v5046
Information

Product information about the SeaFlo Manual Bilge Pump - 24 V - 800 GPH

The innovative Seaflo 13B series electronic automatic bilge pump drains water without the need for an additional float switch, making it a convenient and reliable choice for every boat owner. The electronic detection technology ensures efficient water drainage by running the pump impeller for approximately 0.5 seconds every 2.5 minutes to check for the presence of water. If water is detected, the pump continues to run until all water has been removed, ensuring constant monitoring and protection against flooding.

The SEAFLO bilge pump is made of marine-grade materials and features shielded wiring, making it resistant to harsh conditions on the water and offering a long service life.

Features of the Seaflo non-electronic bilge pump:

  • Compact automatic pump - no float switch needed

  • Checks for water every 2.5 minutes, runs for half a second.

  • Backup function: prevents continuous use if the sensor becomes contaminated with dirt.

  • Consumes 0.25 amperes per day.

  • CE, RoHS, ISO 8846 and ISO 8849 standards.

  • Submersible and ignition-proof.

  • Highly efficient motor with low power consumption and quiet operation.

  • Stainless steel motor shaft.

  • Ventilated impeller housing to prevent air from entering the pump.



  • Marine-grade silicone blocks, tinned wiring.

  • Backflow prevention: includes check valve to prevent water backflow.

  • Includes removable straight drain fitting.

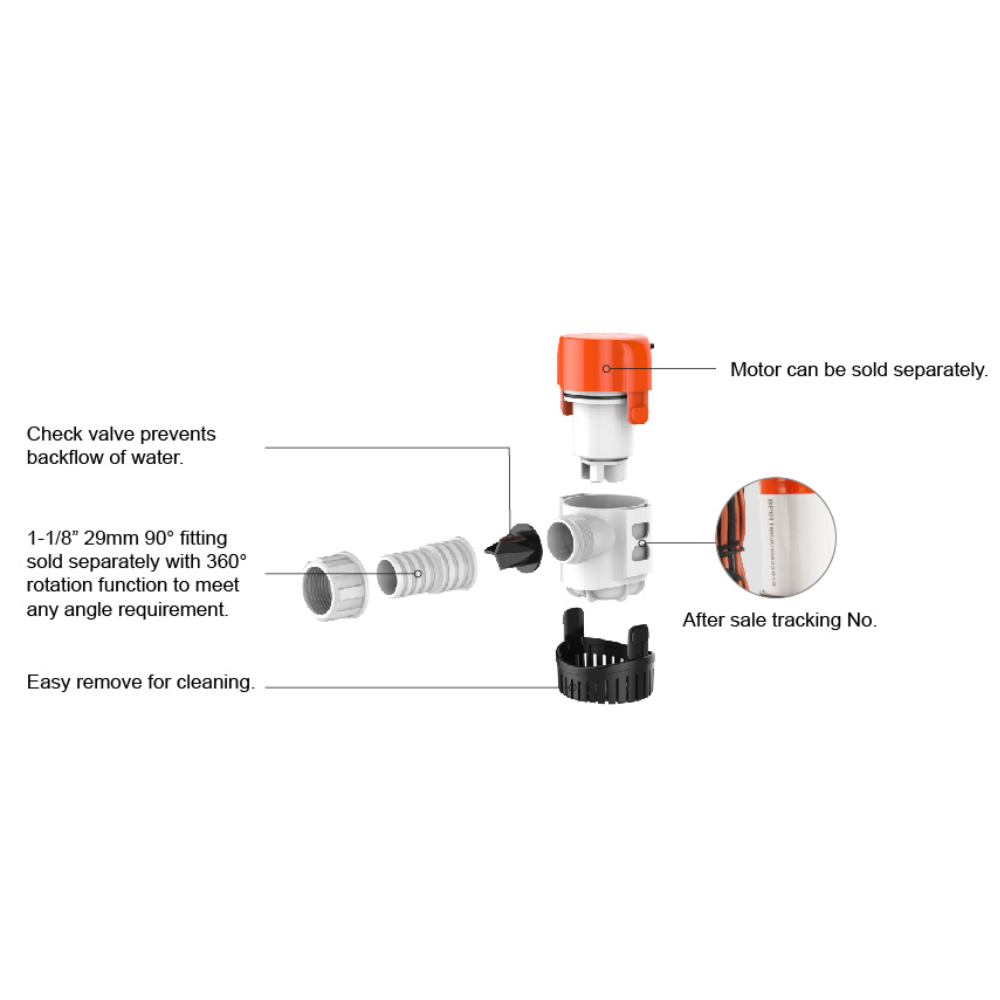

  • Innovative design with split quick connector, can be removed and installed in seconds.

  • It is not necessary to disconnect the foundation or pipes when replacing the pump.

  • The motor can be purchased separately.

  • Exclusive moisture-resistant seals.

  • Threaded drain: easier installation and maintenance.

The SEAFLO 12V electric, non-automatic submersible pumps for marine use with capacities of 600 and 800 gallons per hour offer water discharge activated by a control panel or float switch. They feature anti-airlock protection, exclusive moisture-resistant seals, and robust, marine-grade wiring.

The pumps are available with a straight connection. The larger impeller design and more robust motor ensure that the pumps perform better than other brands. The new, innovative, split quick-coupling system makes it possible to remove and install the pump within seconds!

Replacing a pump has never been easier. It is not necessary to disconnect the base or pipes when replacing the pump, which meets the needs of most users.

SeaFlo Manual Bilge Pump - 24 V - 800 GPH


Specifications:

Model:

Article no.:


SEAFLO Benelux - Let water work for you

Manual



  • Voltage: 12V

  • Flow rate: 600 GPH

  • Exhaust diameter: 3/4" (19 mm) 1-1/8" (29 mm)

  • Application scenarios: Maritime

12 V - 600 GPH

v5044





  • Voltage: 12V

  • Flow rate: 800 GPH

  • Exhaust diameter: 3/4" (19 mm) 1-1/8" (29 mm)

  • Application scenarios: Maritime

12 V - 800 GPH

v5045





  • Voltage: 24V

  • Flow rate: 800 GPH

  • Exhaust diameter: 3/4" (19 mm) 1-1/8" (29 mm)

  • Application scenarios: Maritime

24 V - 800 GPH

v5046


Features of the Seaflo non-electronic bilge pump:

  • CE, RoHS, ISO 8846 and ISO 8849 standards.

  • Includes check valve to prevent backflow of water.

  • Includes removable straight drain fitting.

  • Threaded drain hose adapters for easy installation.

  • Submersible and ignition-proof.

  • High efficiency, energy-efficient motor, quiet operation.

  • Stainless steel motor shaft



• Protection against air entrapment

• The motor can be sold separately

• Exclusive moisture-resistant seals

• Non-automatic - to be used with a panel switch or SEAFLO float switch

• Threaded drain — easier installation, easier maintenance

• Marine silicone blocks, tinned wiring

• 2-year warranty
