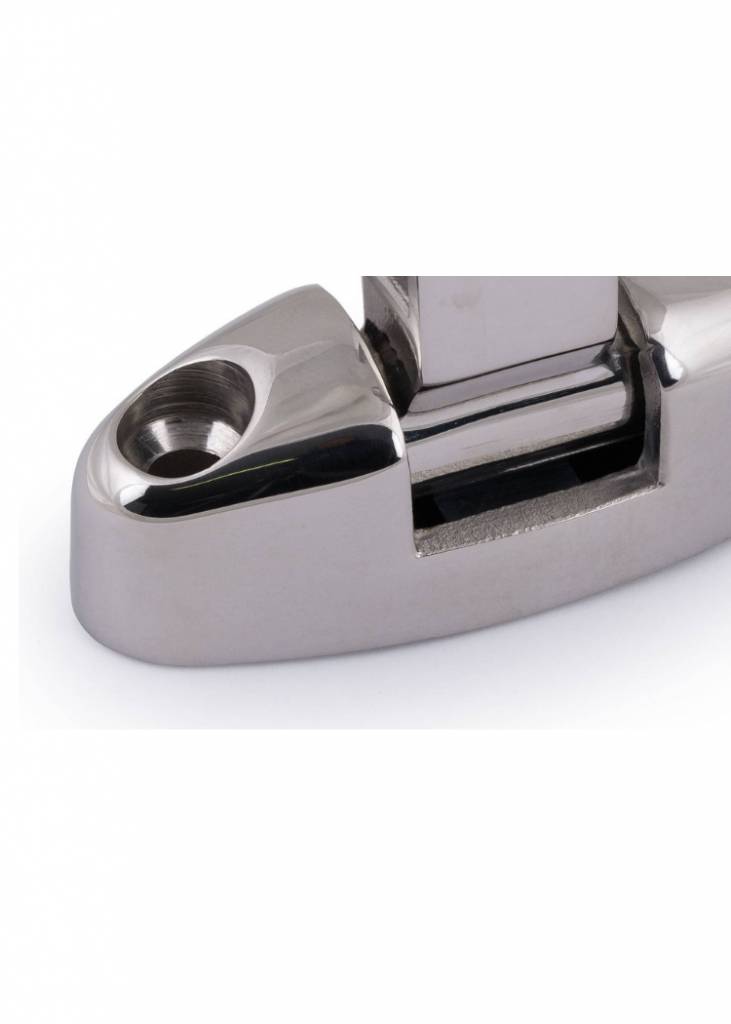

Deckmount Pivot SST

Product information Convertible top fitting with stainless steel hinge.

• Hinges for the top with free tilt.
• Material: polished stainless steel investment casting
• with stainless steel screw on the movable joint
• movable joint is not removable

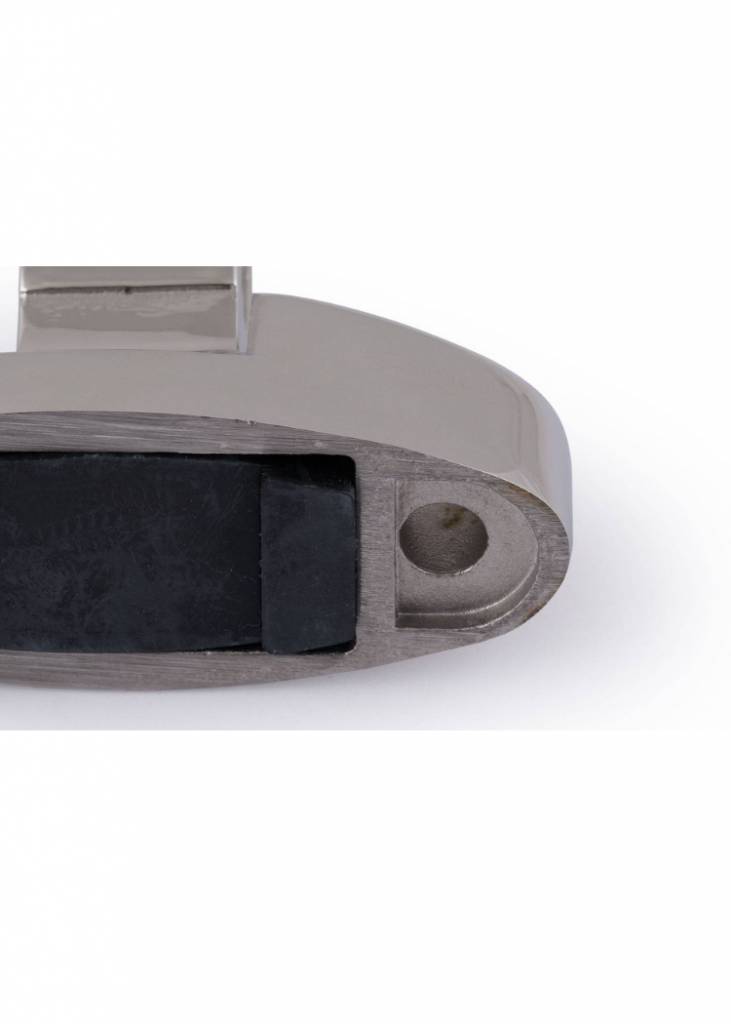

• with rubber pad on the bottom to protect the deck
• two screws for mounting on deck are not included
• usable e.g. for the installation of boatdeck, bimini, sprayhood, u.a.
• Dimensions:
  Height: 50 mm
  Width: 25 mm
  Length: 70 mm
  Distance bore: 50 mm
  Diameter hole: 6 mm
  Width of the bracket: 7.5 mm
