Outdoor Shower Connection - Built-in

Information about the Outdoor Shower Connection - Built-in.

This built-in outdoor shower with hot and cold water is a practical and comfortable addition to your camper, bus, or caravan. Thanks to the integrated shower tray, everything is neatly together, allowing you to easily shower outside whenever needed.

The housing is made of high-quality polypropylene (PP) . This strong plastic is resistant to various weather conditions and is suitable for long-term outdoor use. The outdoor shower is easily built into the wall. You create a recess, place the shower tray in the wall, and ensure a good watertight seal. This results in a neat and professional finish.

Everything neatly stored away

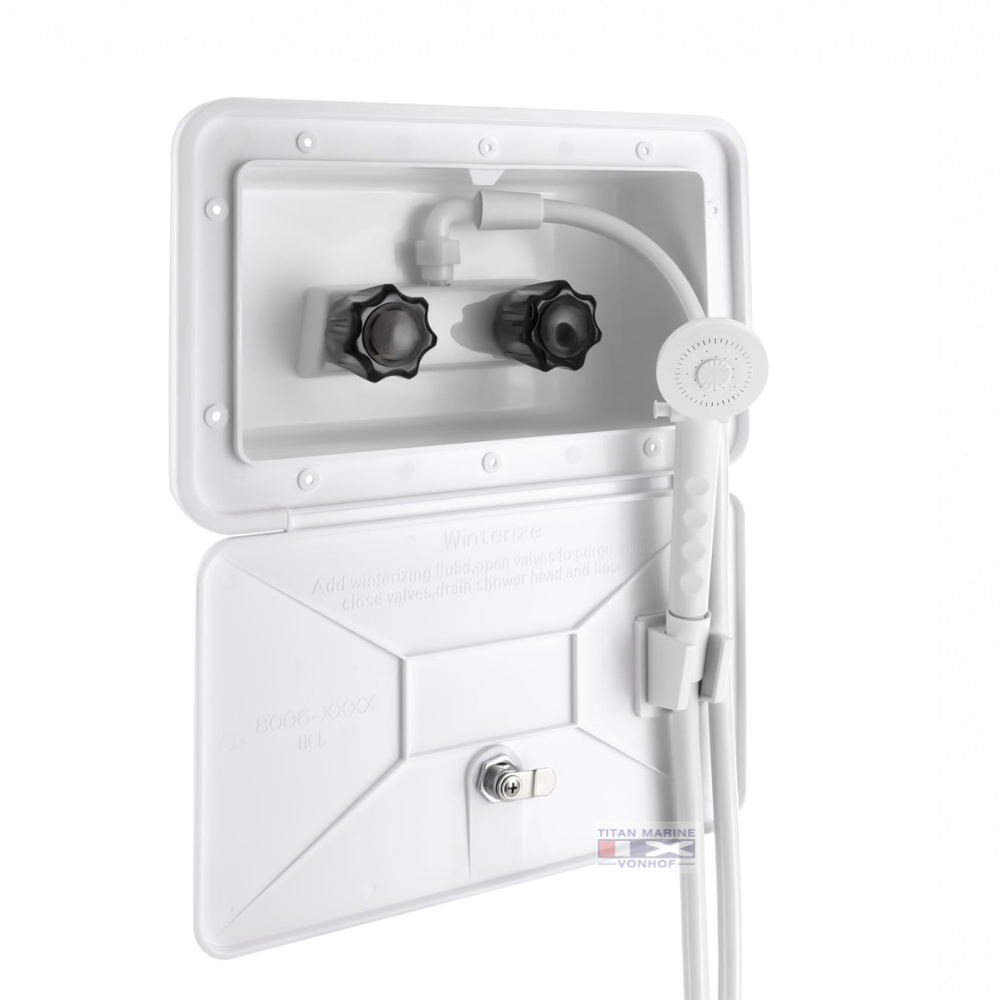

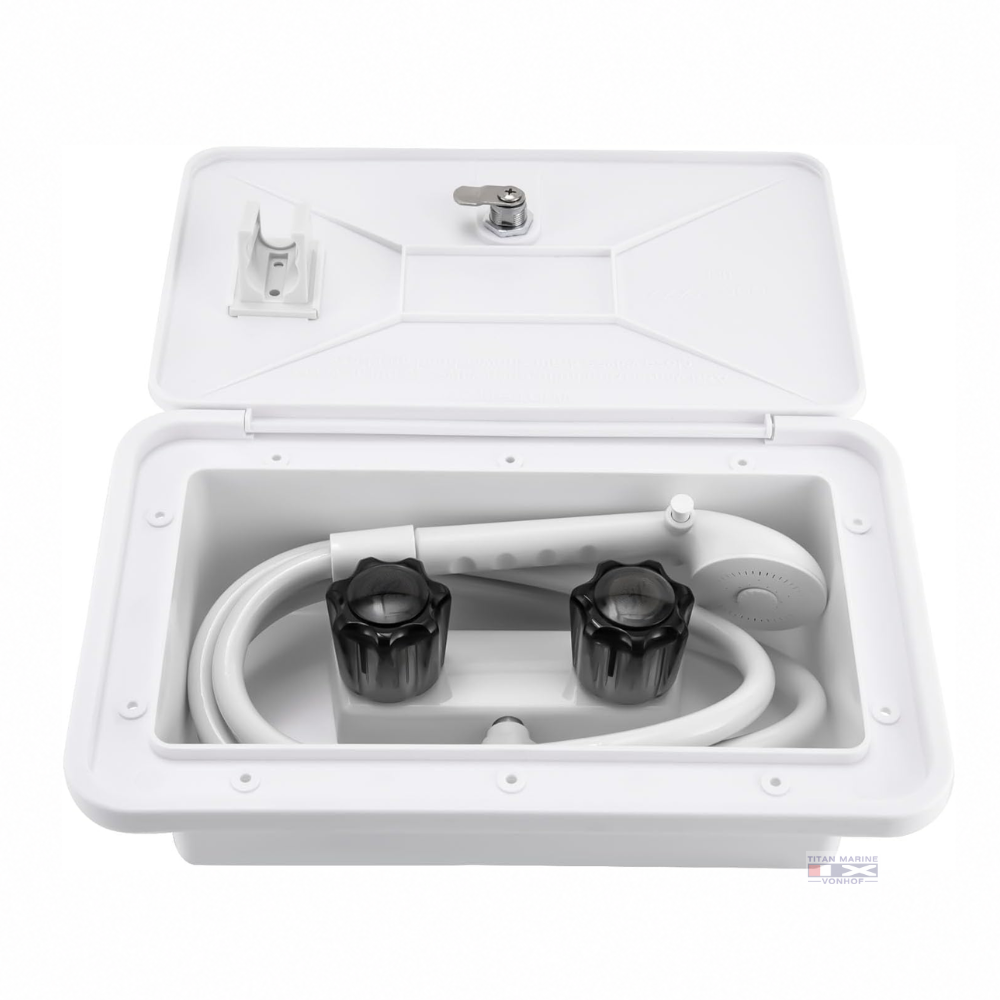

The practical design ensures that the shower hose and shower head can be neatly stored in the housing . When you are finished showering, you simply store everything behind the lockable flap. This keeps the shower head and hose clean while driving and ensures the exterior of your camper or van remains neatly finished.

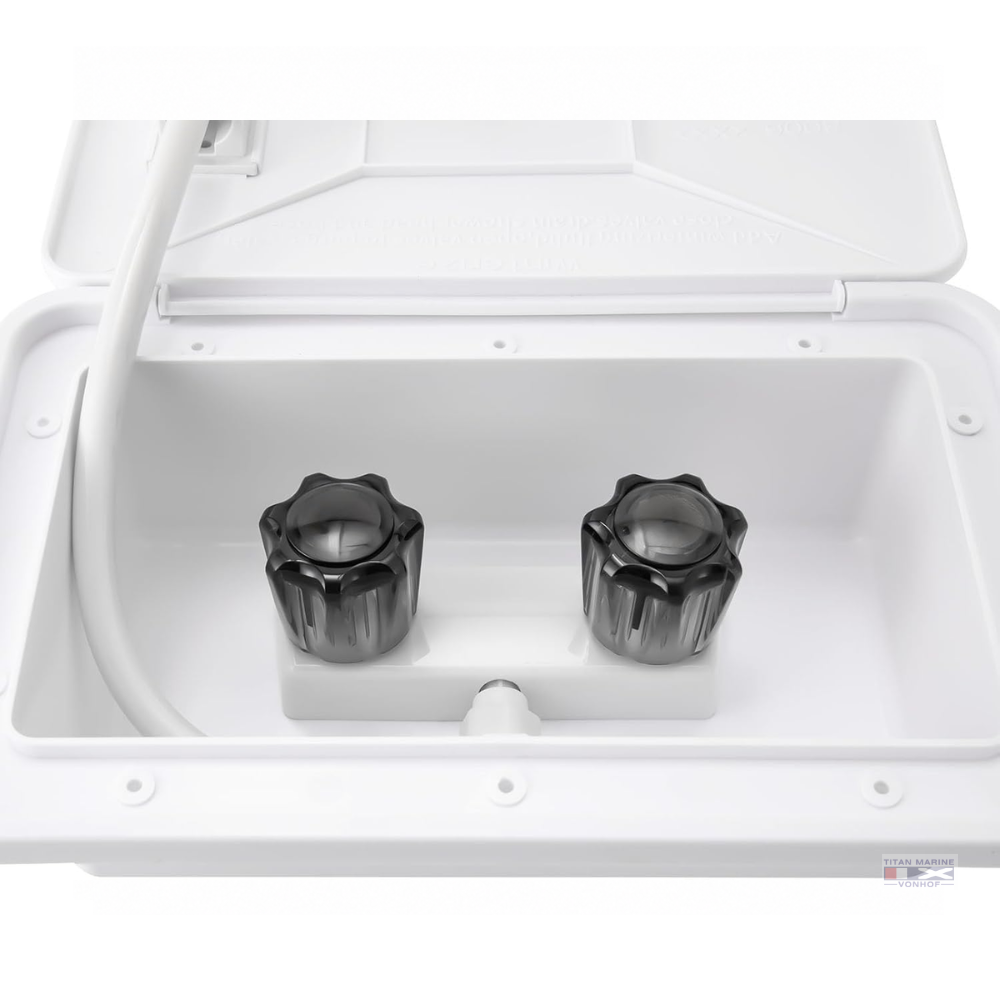

Thanks to the built-in mixer tap, you can easily set the desired water temperature yourself. This way, you can enjoy the comfort of hot and cold running water even outdoors.

Simple connection

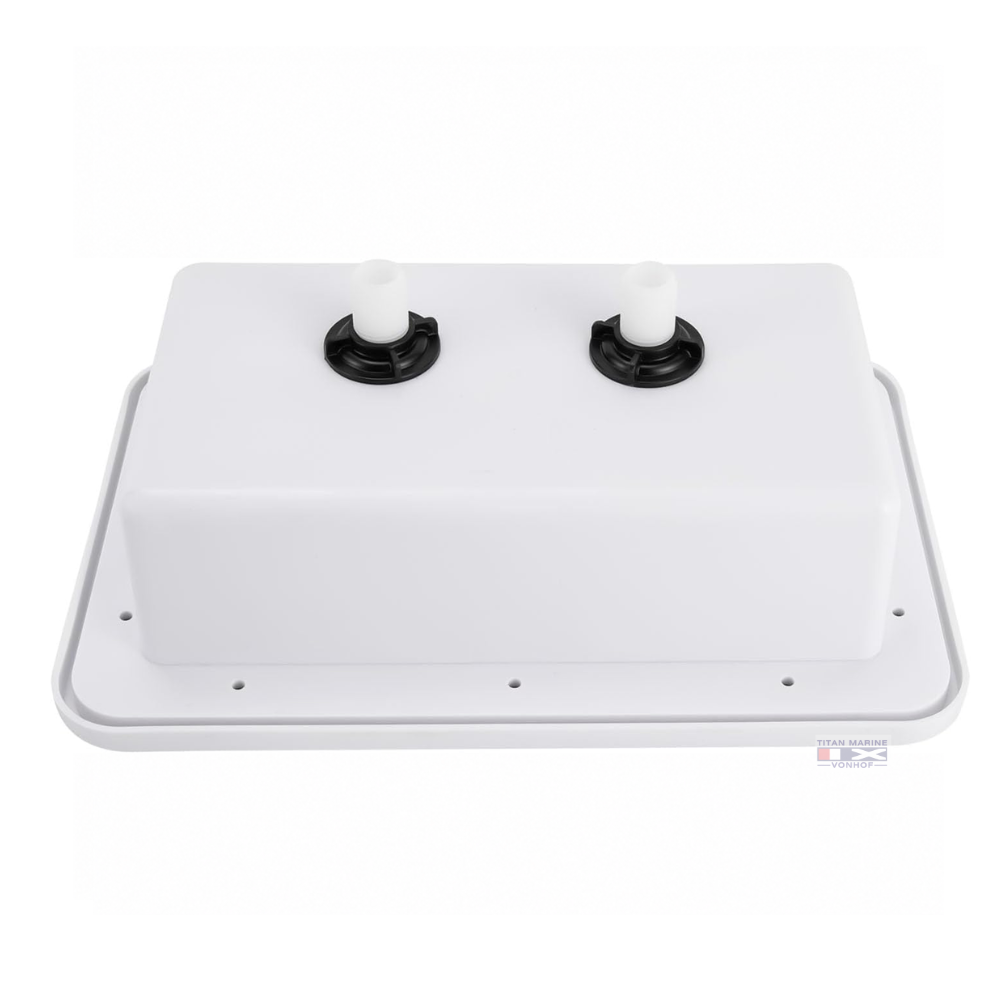

The flush-mounted box has an installation depth of 83 mm , making it suitable for various camper and vehicle walls. The connections for hot and cold water are located on the rear. The connections feature a 1/2-inch male thread , a commonly used size in sanitary installations. With the appropriate reducers or hose fittings, the connections can be easily connected to flexible water pipes.

Specifications:

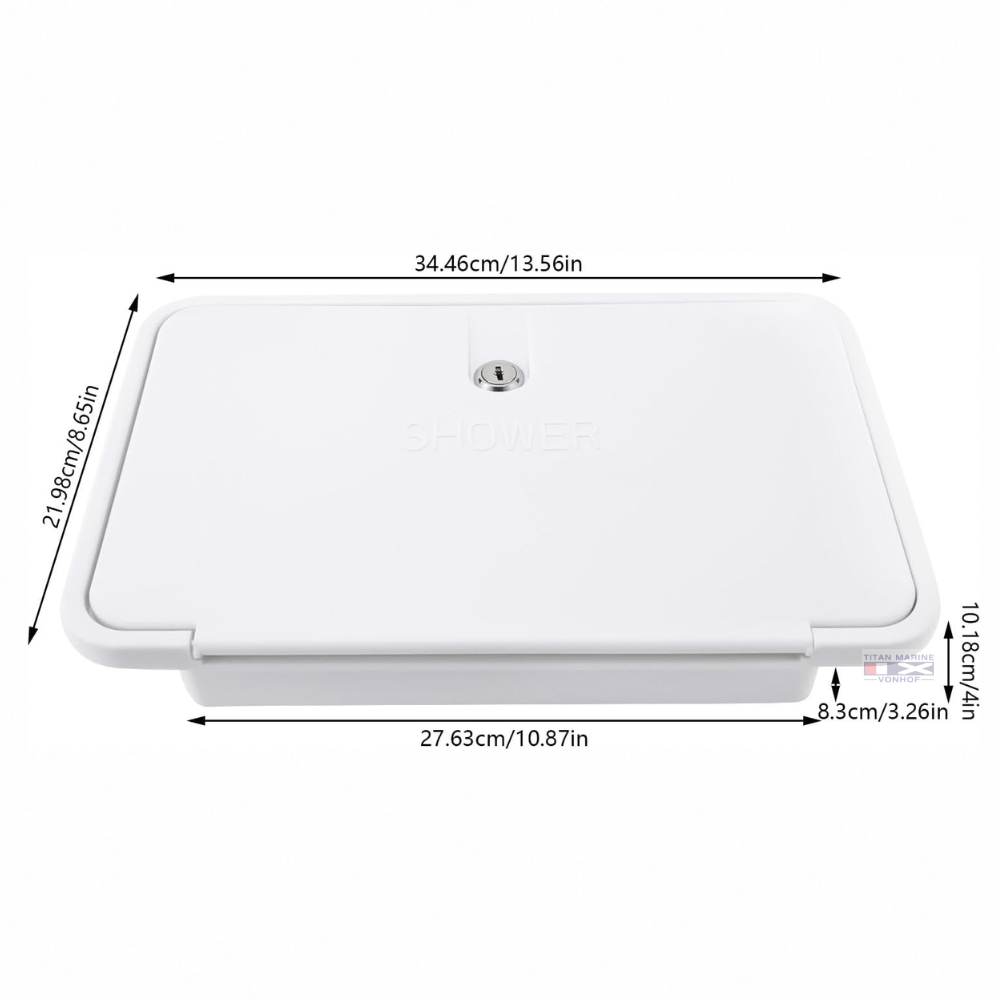

• External dimensions: 345 x 220 mm

• Installation depth: 83 mm

• Construction thickness: 19 mm

• Material: Polypropylene (PP)

• Water connection: 1/2 inch male thread

• Water connection: Hot and cold water

• Function: Mixer tap with adjustable temperature

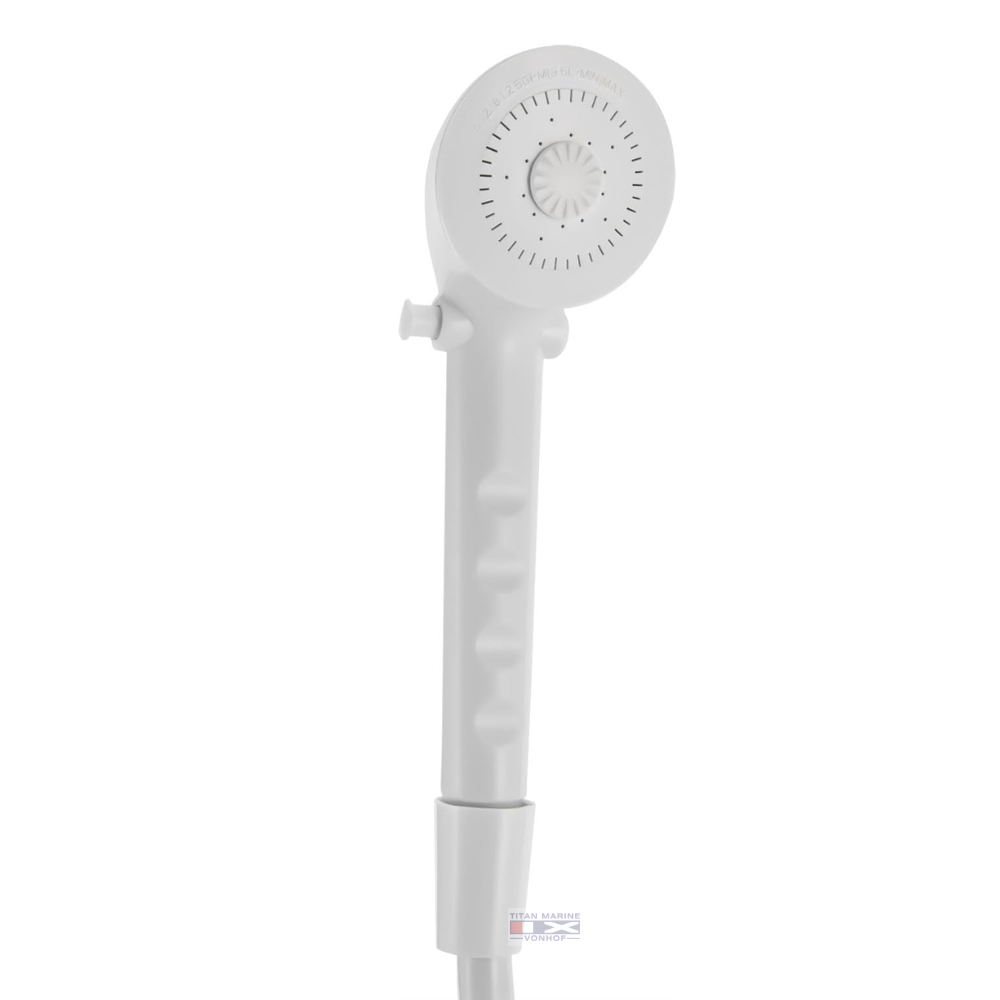

• Includes: Shower head and shower hose

Hot and cold water

This version is equipped with a mixer tap for hot and cold water . This allows you to easily adjust the temperature to your preference. An outdoor shower is ideal for rinsing off after swimming, exercising, or walking, but also for cleaning items such as bicycles, shoes, or pets.

Waterproof mounting

When the outdoor shower is closed, the enclosure provides protection against splashing water. For proper installation, it is important to carefully seal the edges between the shower tray and the wall. Use a suitable sealant for this purpose so that no water can penetrate the wall behind the enclosure.

Be careful in frost

Do not forget to drain the outdoor shower thoroughly during the winter period. If water remains in the tap, hose, or housing and freezes, damage can occur to the plastic and internal components. Before winter storage, turn on the tap and let the remaining water drain from the hose and pipes.

Convenient combination

For a proper and watertight installation, a suitable sealant is indispensable. Additionally, you can combine the outdoor shower with:

• A suitable water pump

• Flexible water pipes

• Reducers or hose fittings

• Hose clamps for a secure and leak-free connection

• A high-quality sealant for assembly

With this complete built-in hot/cold outdoor shower, you can easily add extra comfort to your camper, bus, or caravan and enjoy the option to shower outdoors anywhere.
