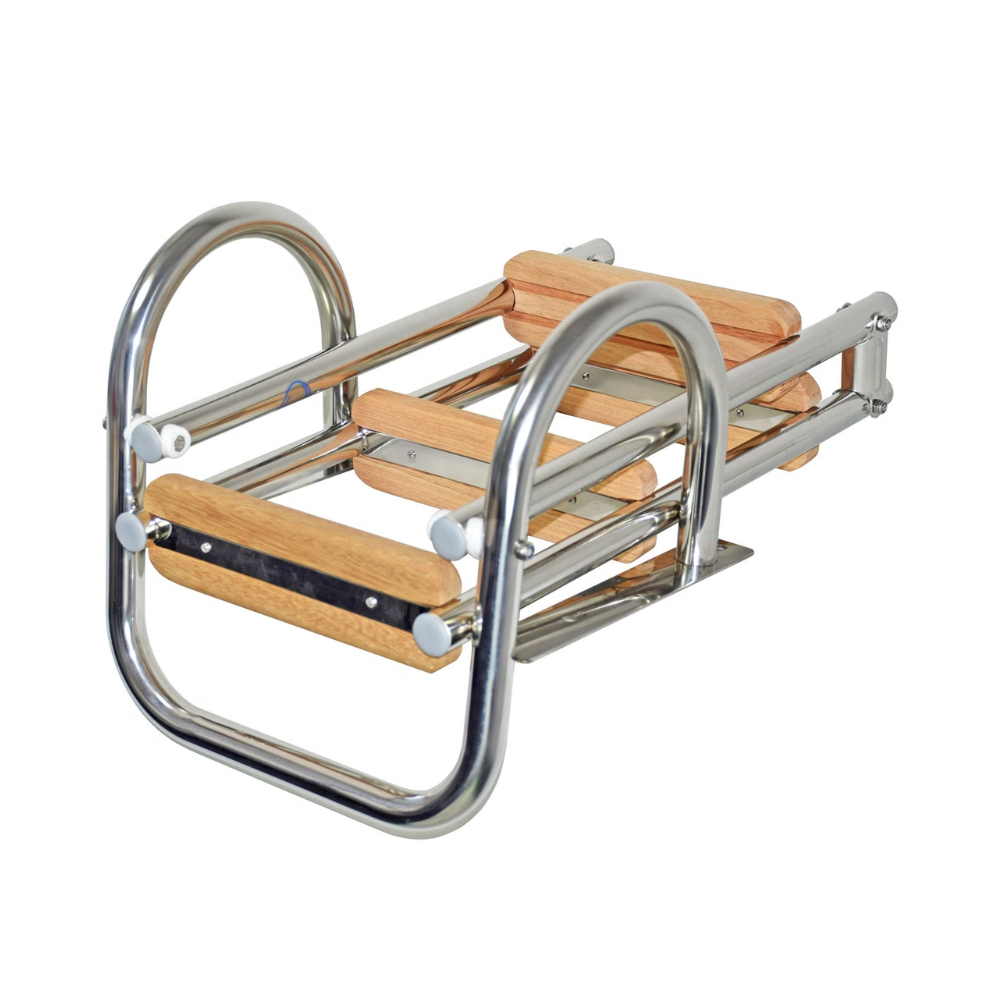

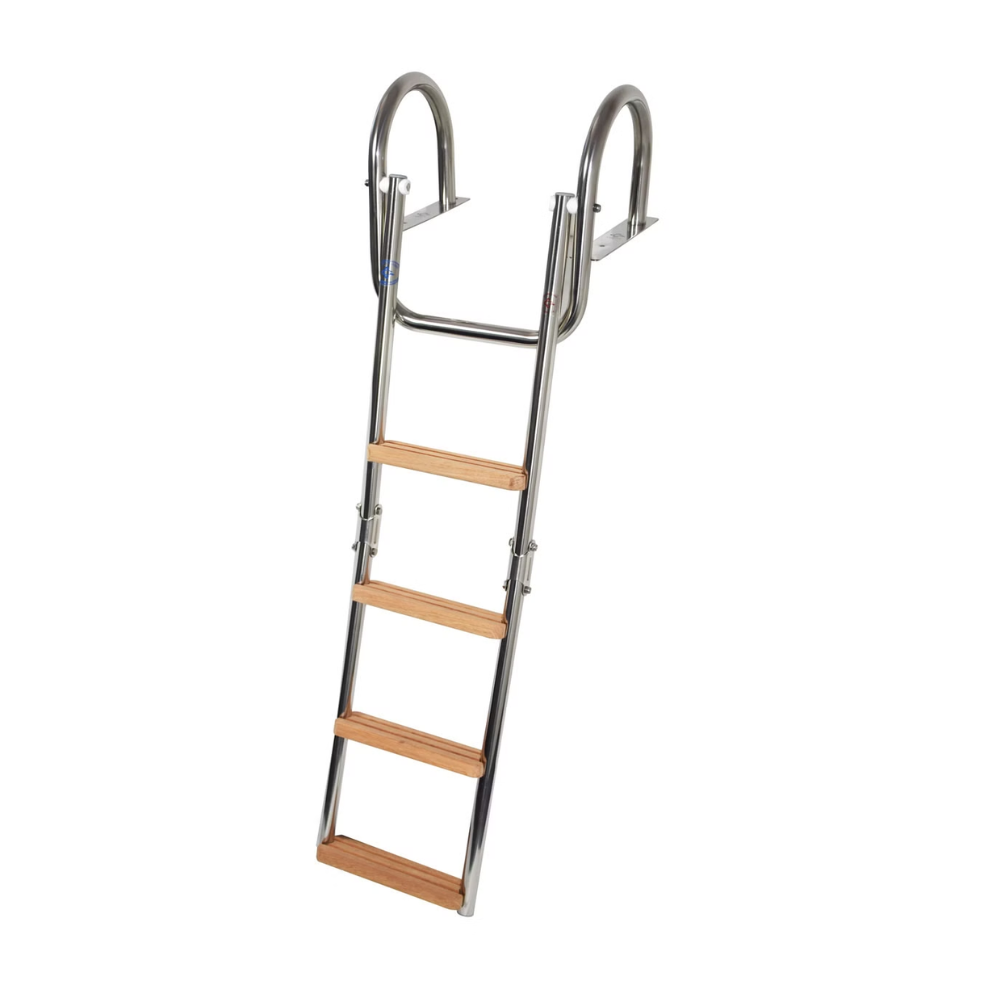

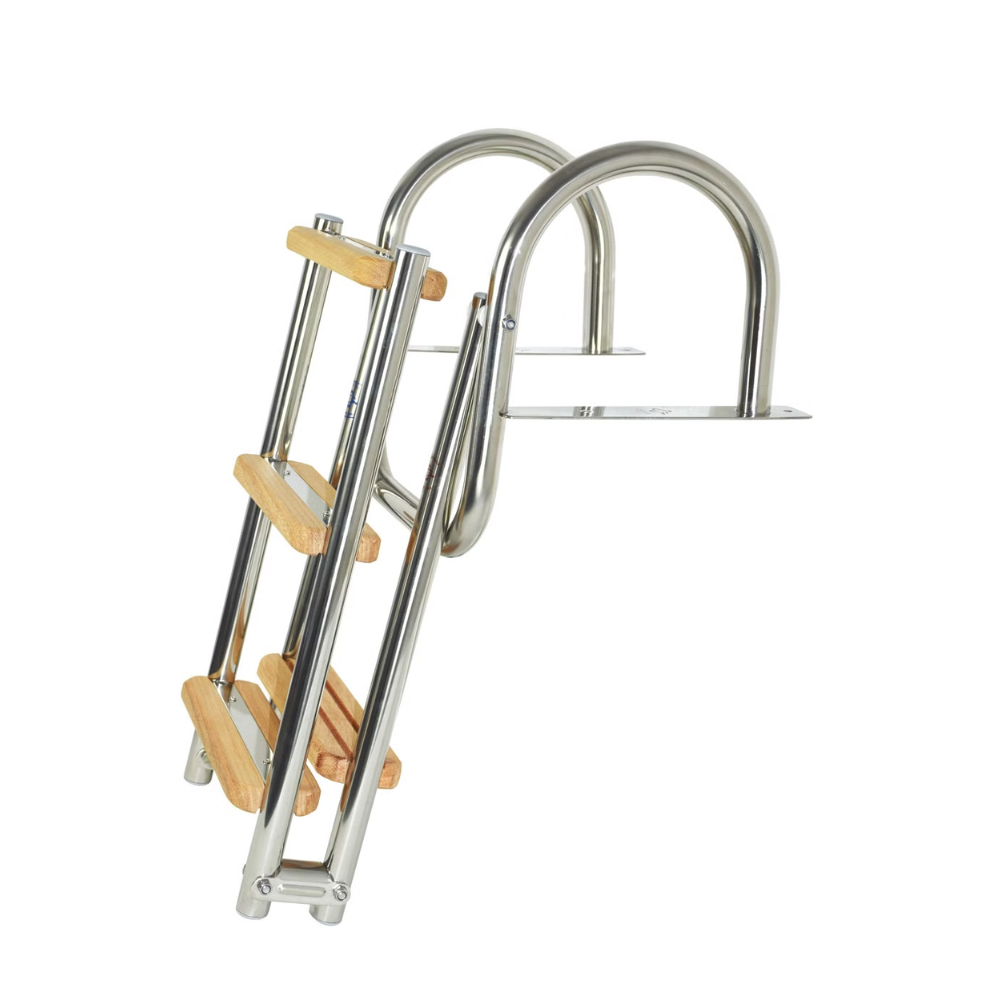

Information about the TM Handrail swimming ladder 4 steps Teak

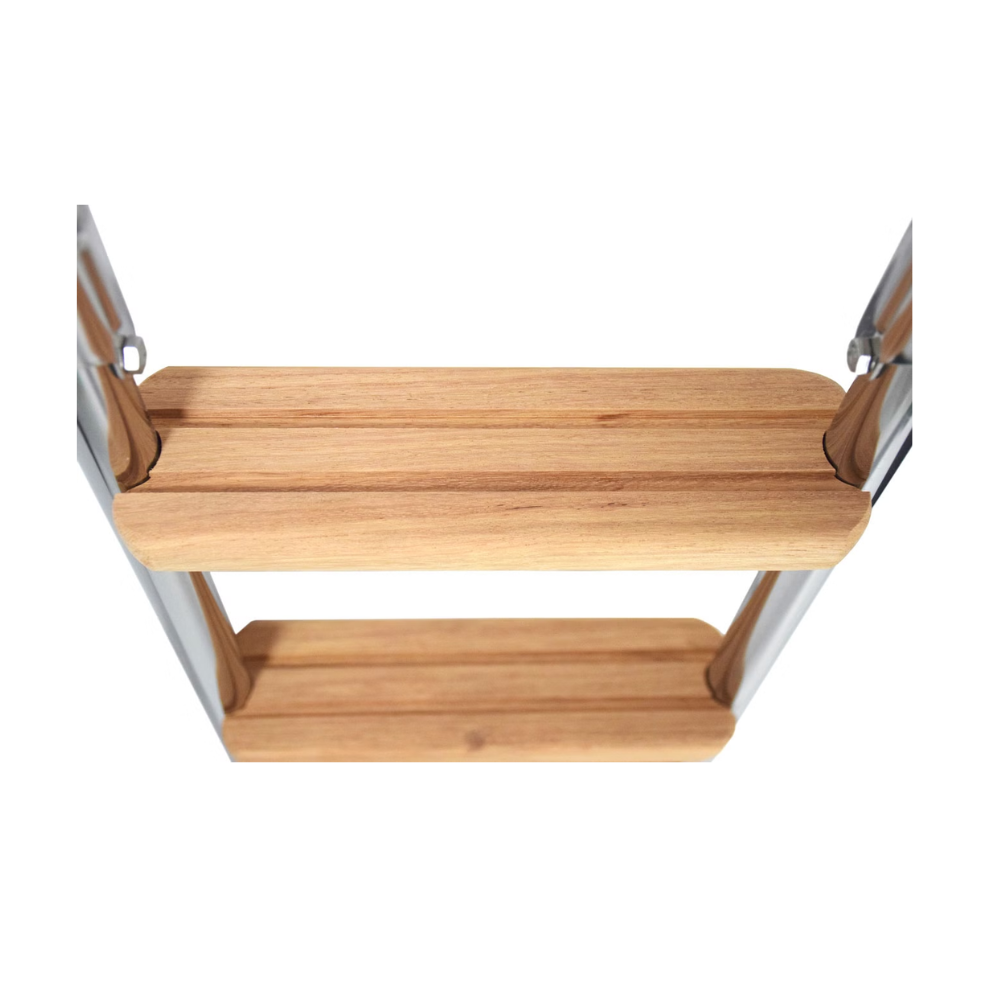

The swimming ladder is ideal for use on your boat or for installation on a jetty. Made of 316 stainless steel, making it strong. The steps are made of teak wood for a good grip and a beautiful appearance.

+ 1 stands for the oval fixed step
Length: unfolded = 1156 mm, folded = 576 mm

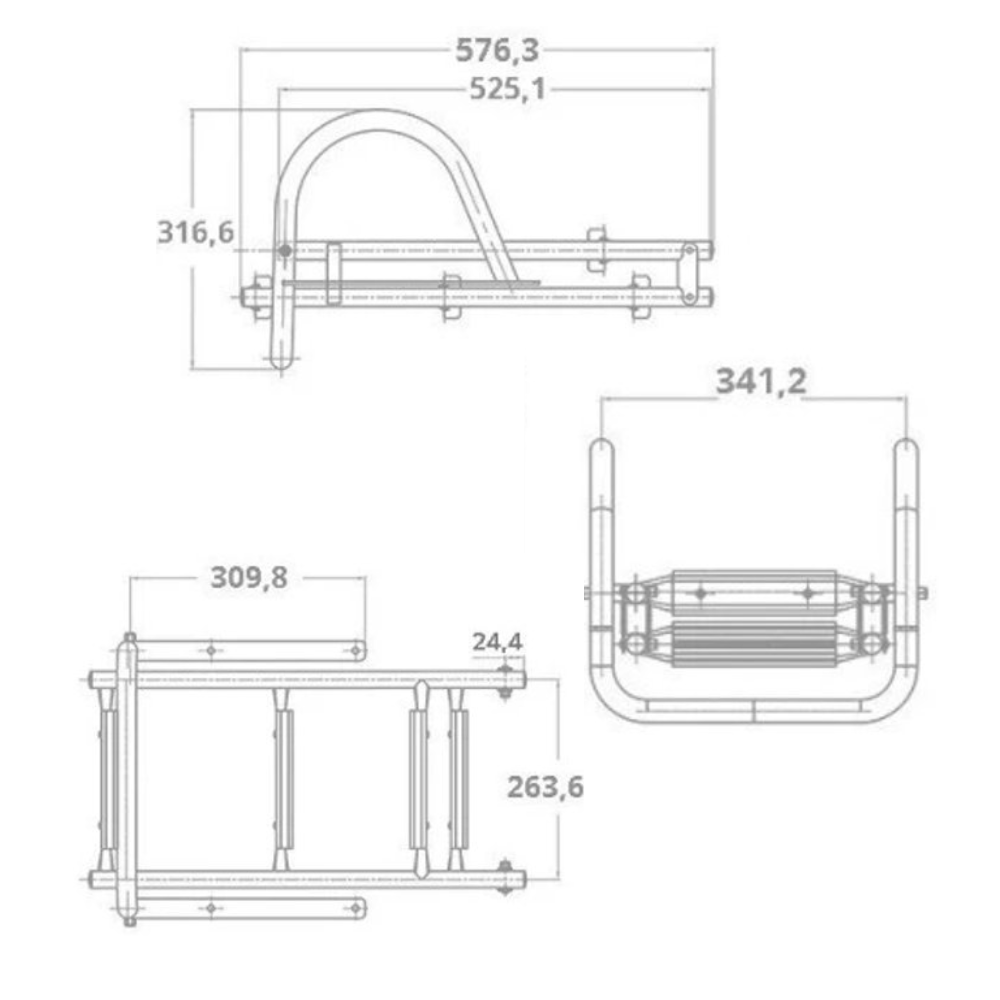

SIZES:

- Total length unfolded: 1190 mm (from top of bracket/arch to bottom of swimming ladder)

- Total width: 360 mm

- Inside tread width: 235 mm

- Mounting feet: holes 175 mm center to center.

- Distance from mounting point to bottom of swimming ladder: 995 mm

- Distance from top of arch to mounting point: 316.6 mm

- 2 mounting holes of 8.2 mm on both sides
