Swimming ladder handrail - Teak
Brand:
TM
| Article code | 17083TW |
Information

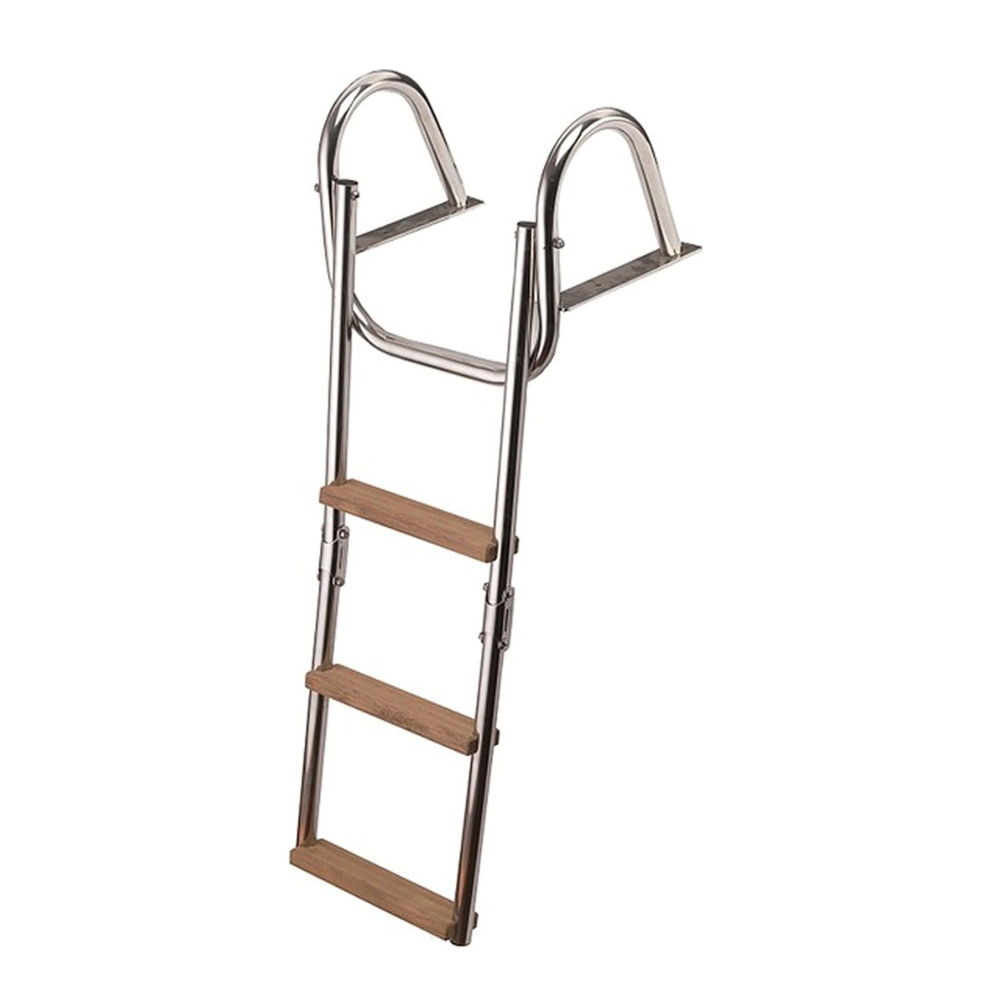

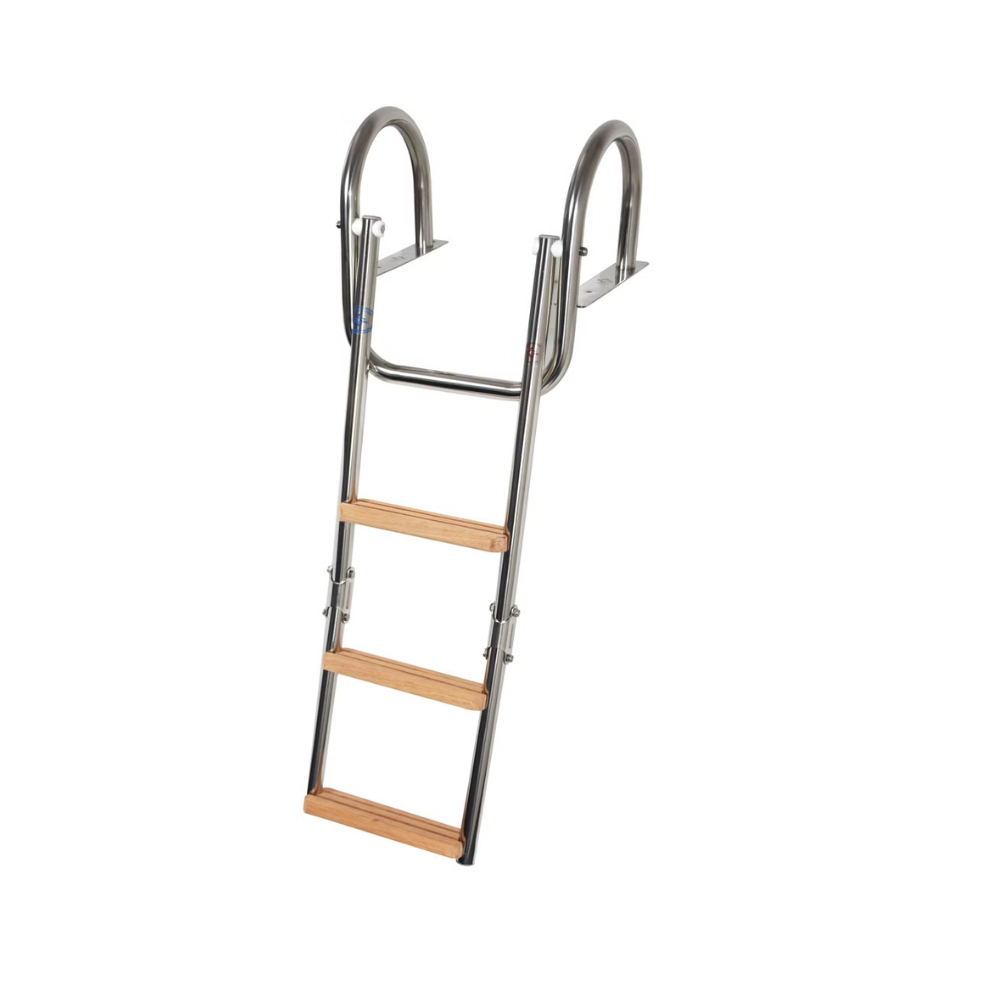

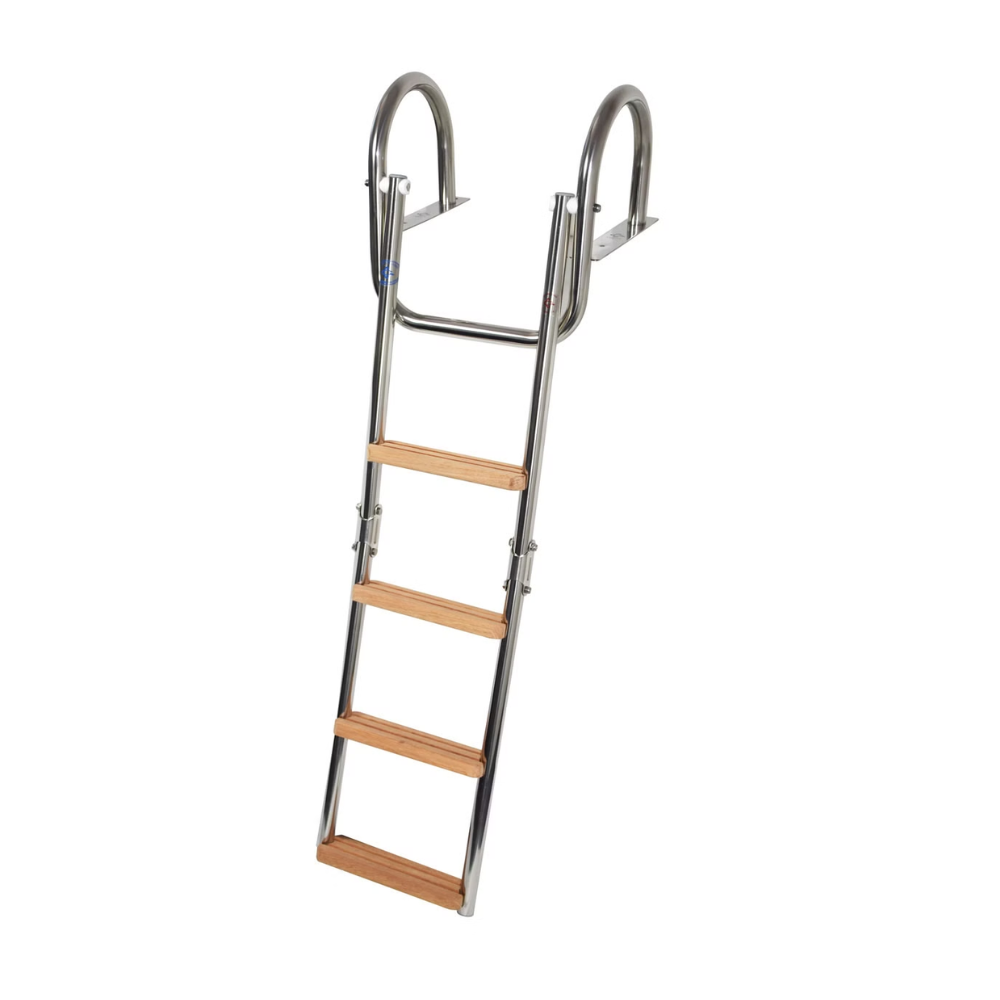

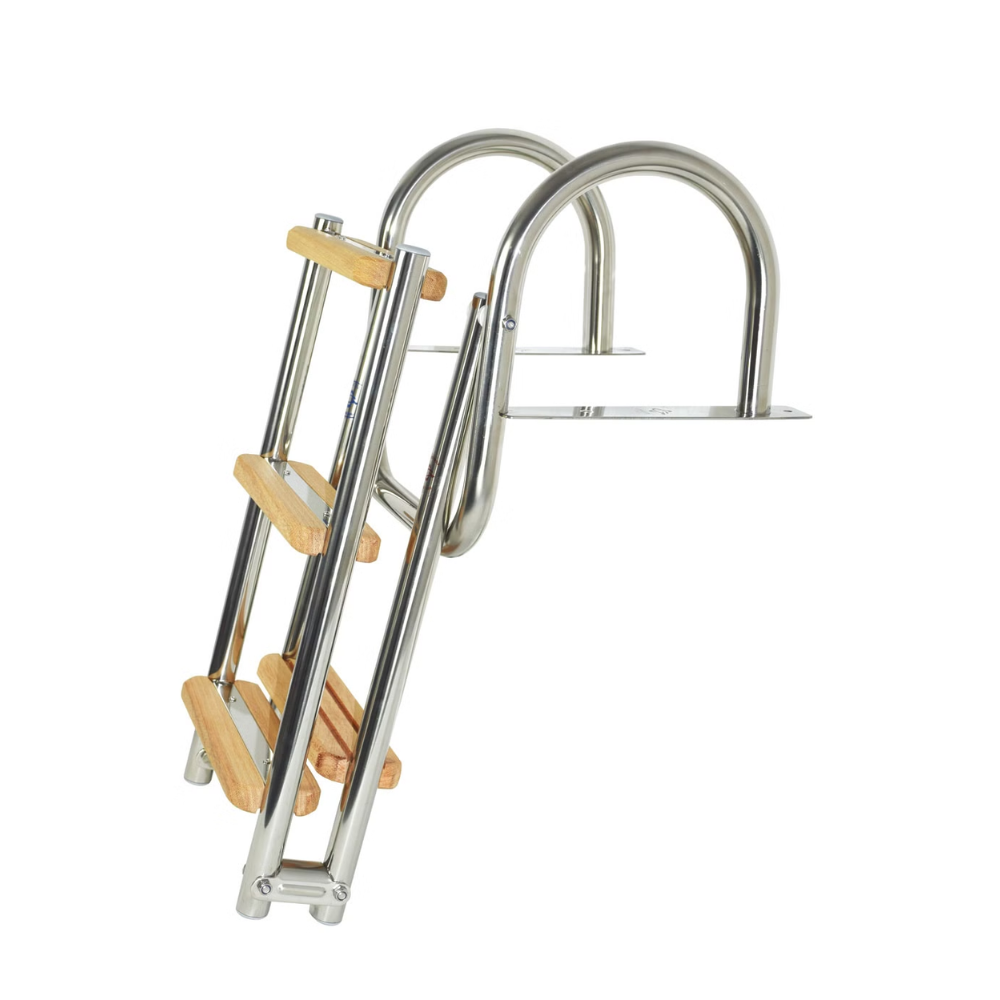

Information about the TM Handrail swimming ladder 3 or 4 steps Teak

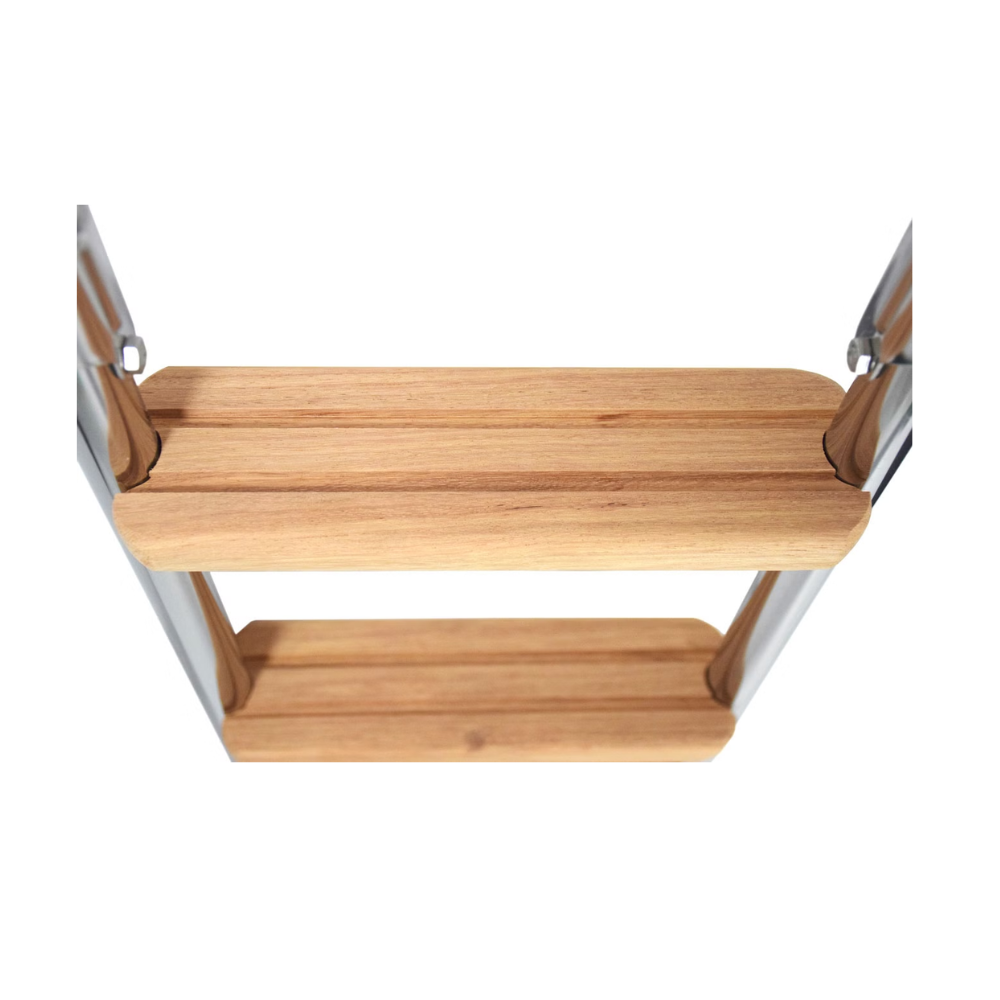

The swimming ladder is ideal for use on your boat or for installation on a jetty. Made of 316 stainless steel, making it strong. The steps are made of teak wood for a good grip and a beautiful appearance.
+ 1 stands for the oval fixed step

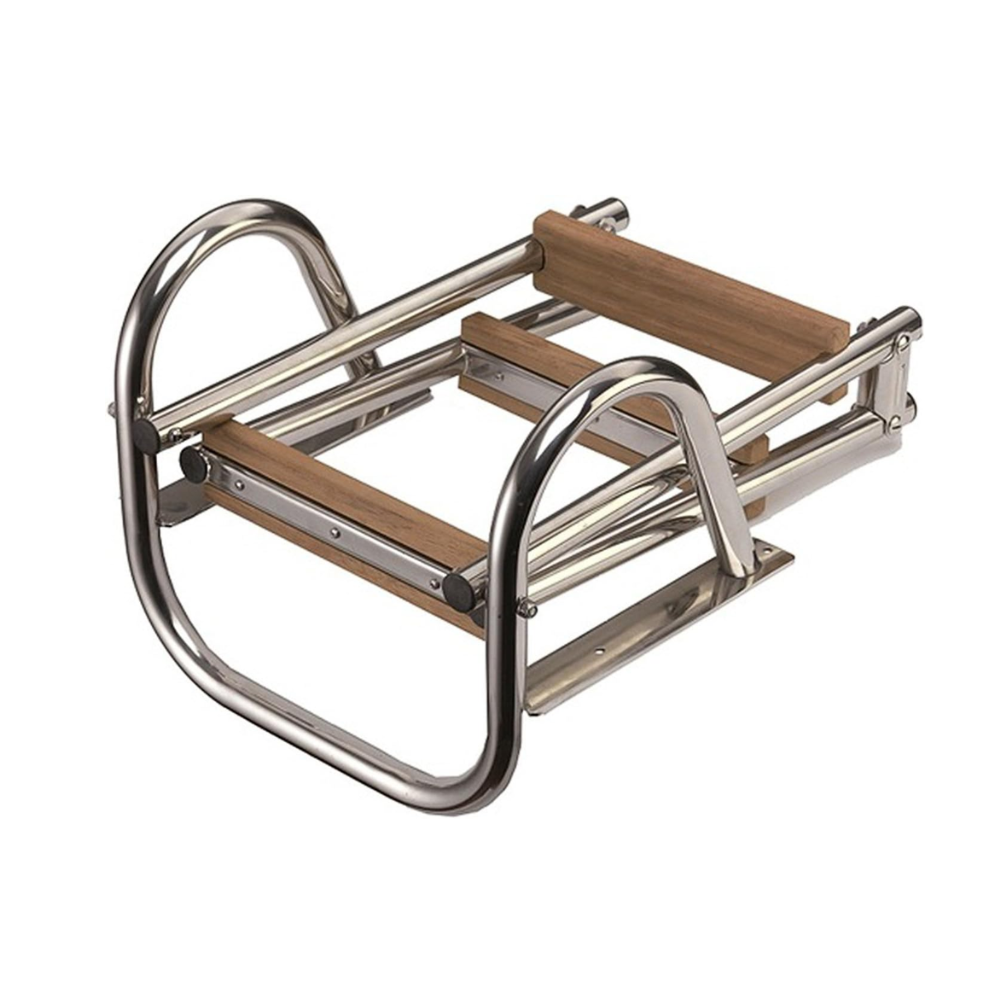

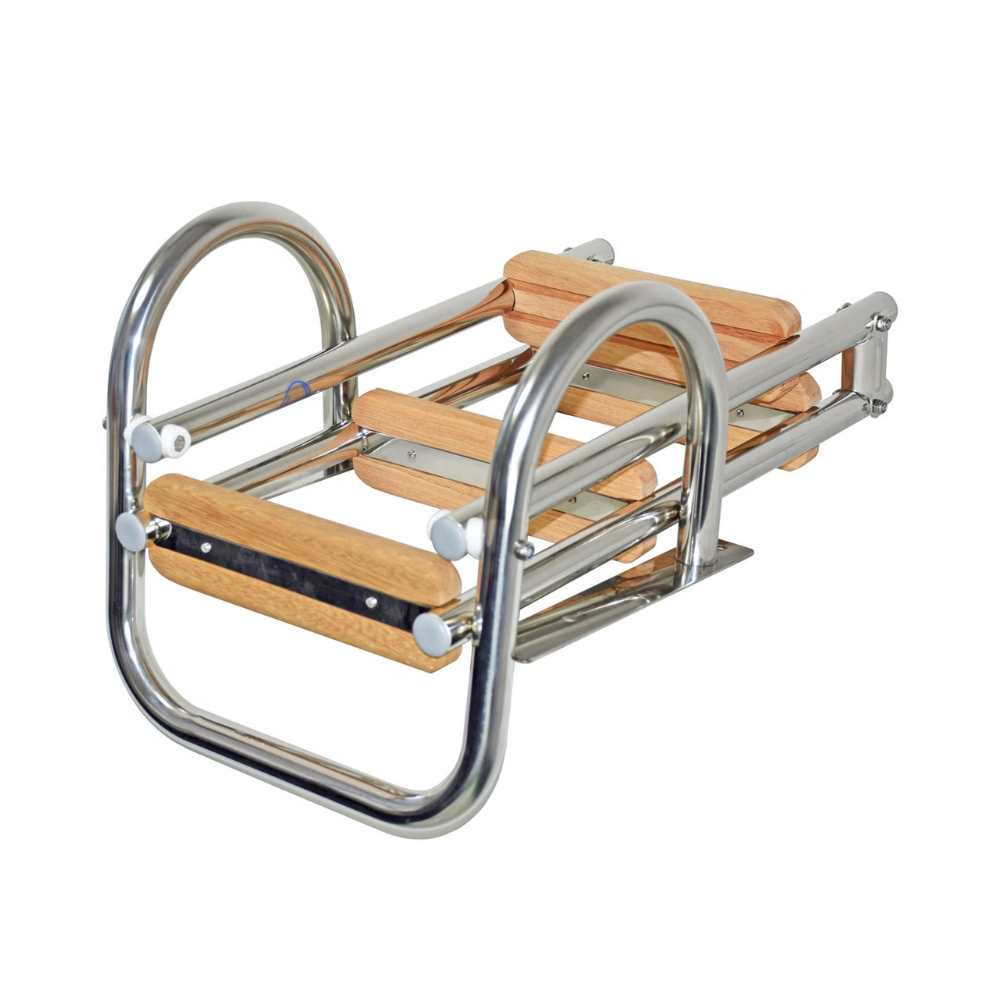

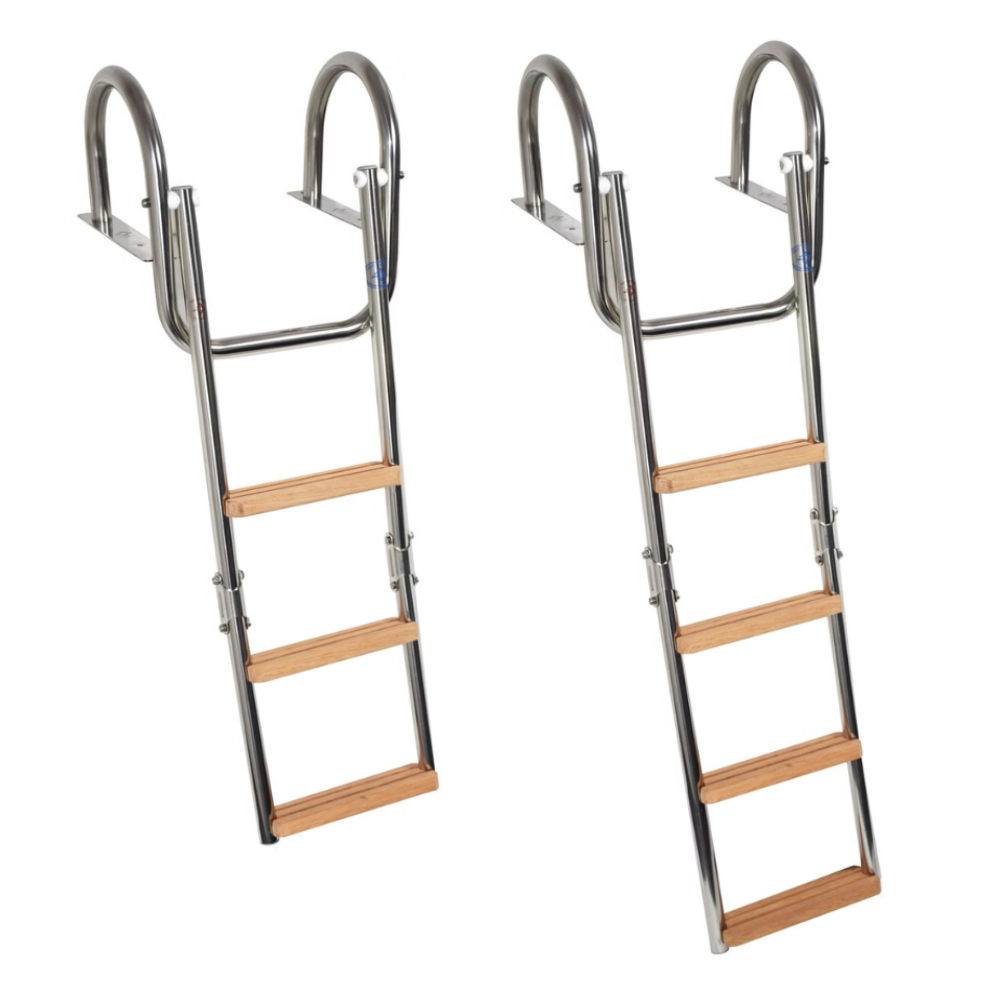

Staircase 3 + 1 step: Length unfolded = 860 mm, folded = 374 mm

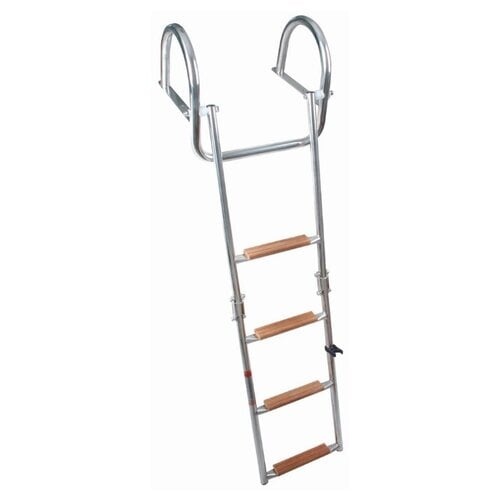

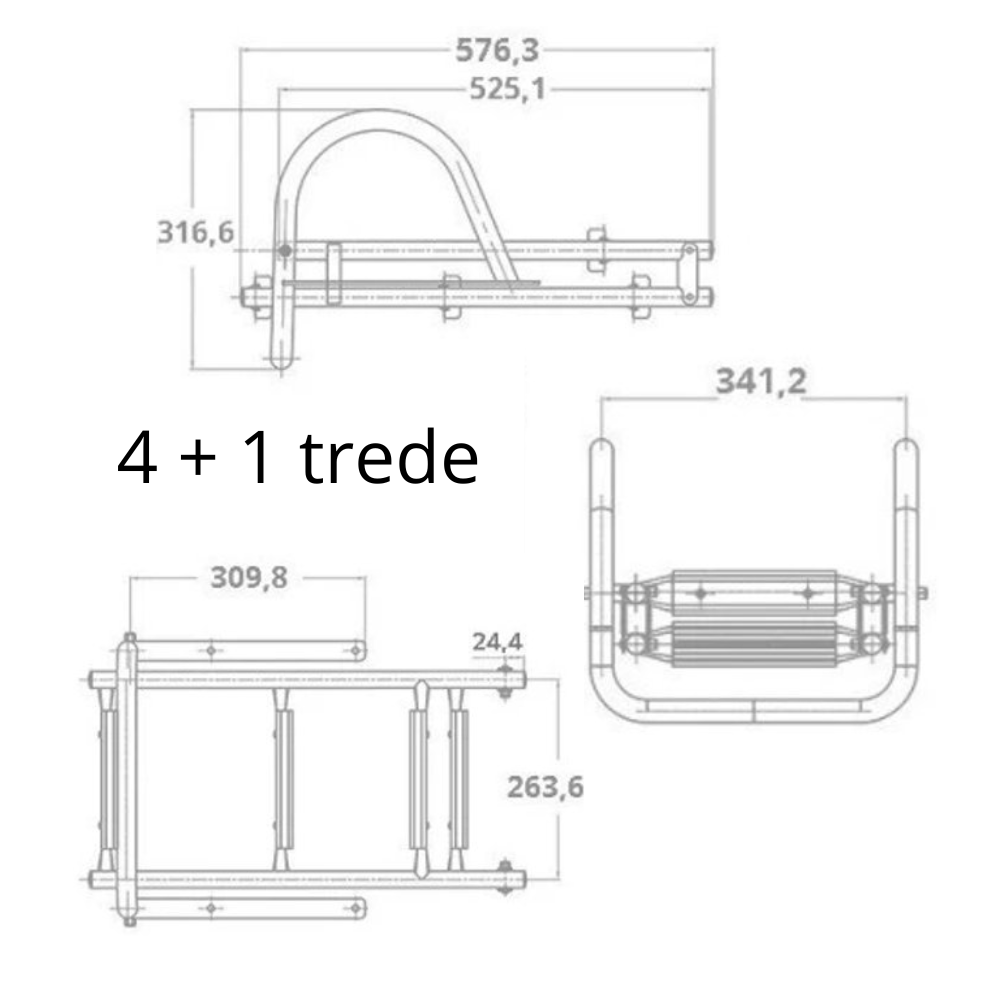

Staircase 4 + 1 step: Length unfolded = 1156 mm, folded = 576 mm

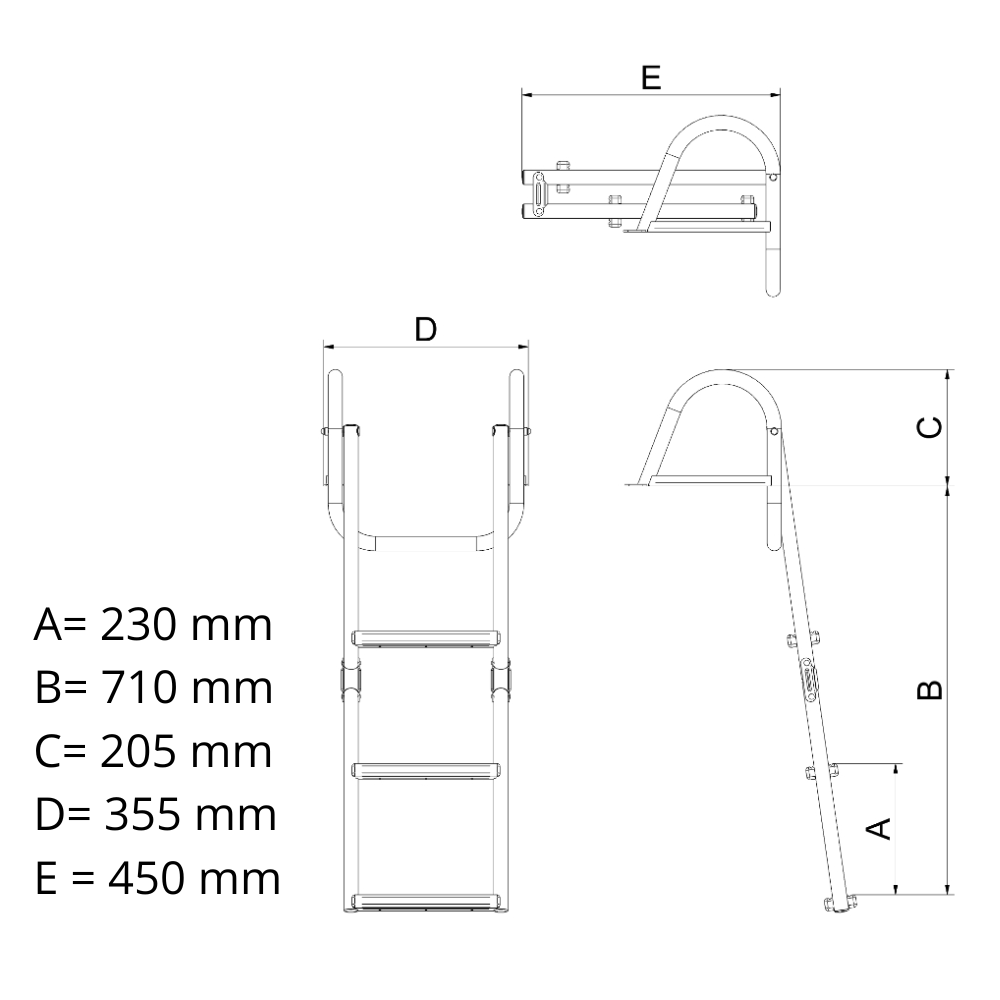

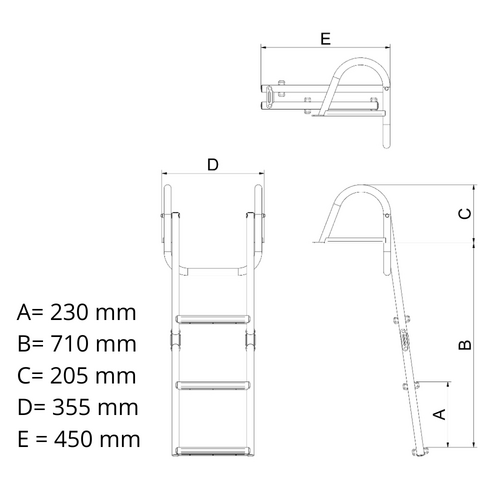

SIZES:
- Total width: 355 mm
- Inside tread width: 235 mm
- Mounting feet: holes 175 mm center to center.
- Distance from mounting point to bottom of swimming ladder: 995 mm
- Distance from top of arch to mounting point: 316.6 mm
- 2 mounting holes of 8.2 mm on both sides
TM Handrail swimming ladder 3 or 4 steps Teak |
|||||||
Properties |
Folded |
Unfolded |
Width |
Steps |
Pipe diameter |
Product no.: |
|
|
|
|||||||
|
374 mm |
860 mm |
355 mm |
3 + 1 |
22 mm |
|||
|
576 mm |
1156 mm |
355 mm |
4 + 1 |
22 mm |
|||
|
- 316 Stainless Steel - Polished Stainless Steel |
||||||
|
Please note: Supplied without screws and mounting hardware. |
|||||||
|
Please note: Two small wooden plates must be attached between the swimming ladder and the surface to which it is mounted, so that the swimming ladder is raised 15-20mm and can be folded completely on its side. |
|||||||
