Ercole Built-in fuel tank with angled filler opening 69 liters
Brand:
Nuova Rade
| Article code | 50206 |
Information
The Ercole built-in fuel tank 69 litres, is supplied without a fuel cap.
Features Ercole Built-in fuel tank:
- The fuel tank with straight filler opening is made of strong polyethylene for long life.
Polyethylene prevents rust formation. It has a longer lifespan, unlike metal tanks.
The Ercole built-in tank is equipped with a number of connections:
1: An intake manifold with a diameter of 8 mm is provided for the fuel intake to the engine.
2: There is also a 38 mm opening with a 45° angle for filling the tank. This opening is not capped.
3: There is a sealed opening on the tank for the possible installation of a fuel sender/fuel transmitter.
All models have a fuel outlet for a Ø 8 mm hose and a fuel inlet with either a threaded connection and a cap, a vertical outlet for a Ø 38 mm hose, or a 45° angled outlet for a Ø 38 mm hose. Pre-cut for a tank level sensor.
The Ercole built-in tank is CE approved according to Directive 2003/44/EC.
| Code | Title | Type | Capacity | Length | Width | Height | Connection piece | Deck filler cap |
|---|---|---|---|---|---|---|---|---|
| 35008 | ERCOLE Tank fuel 55 liters without cap, 45° deck filling, L.650 mm | Without cap | 55 liter | 650 mm | 350 mm | 300 mm | 8 mm | 45° Ø 35mm |
| 50196 | ERCOLE Tank fuel 41 liters without cap, 45° deck filling, L.500 mm | Without cap | 41 liter | 500 mm | 350 mm | 300 mm | 8 mm | 45° Ø 35mm |

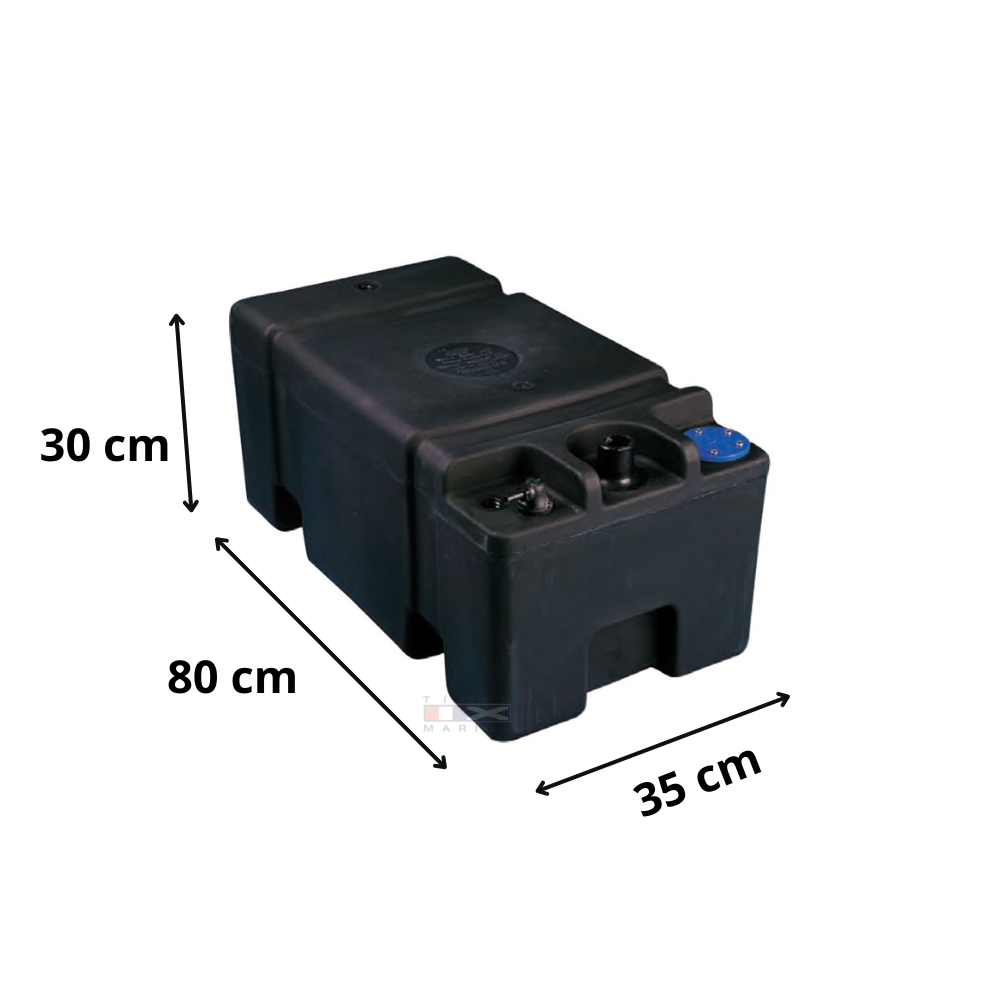

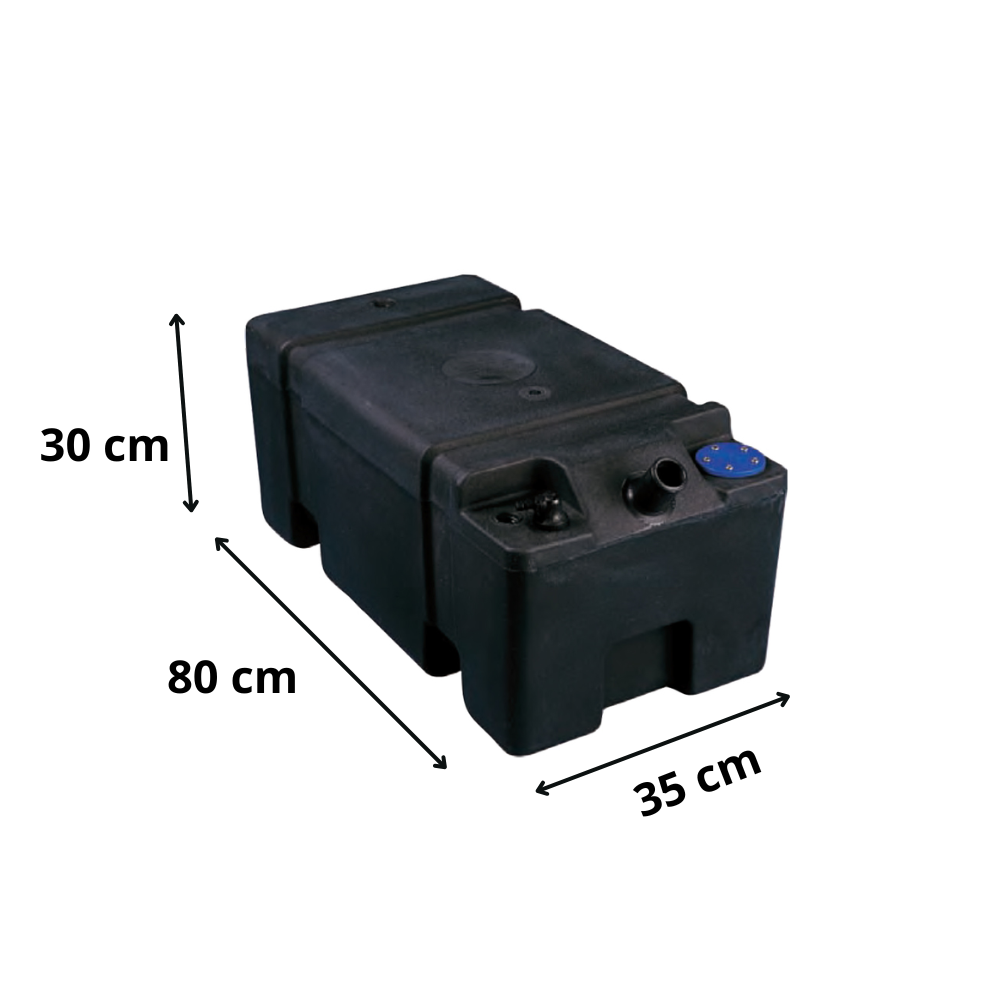

| 50206 | ERCOLE Tank fuel 69 liters without cap, 45° deck filling, L.800 mm | Without cap | 69 liter | 800 mm | 350 mm | 300 mm | 8 mm | 45° Ø 35mm |
