RIVIERA Steering system set - Metal Helm - KMDA100M - with T02 Steering cable

Brand Name :
Article number:
Delivery time:
Ordered before 16:00, delivered the next day within the Netherlands. Outside the Netherlands on request.
€--,-- * Excl. tax Excl. Shipping costs
Quantity :
+ -
  • Information

Information about the Steering Sets KMDA100 & KMDA100M

We have two steering sets from Riviera in our range the KMDA100 & the KMDA100M. The steering set KMDA100 is suitable for boats with an outboard engine with a maximum length up to 9 meters and an inboard engine up to 10.5 meters.

The control set KMDA100M is suitable for all types of boats with a maximum length of up to 10.5 meters.

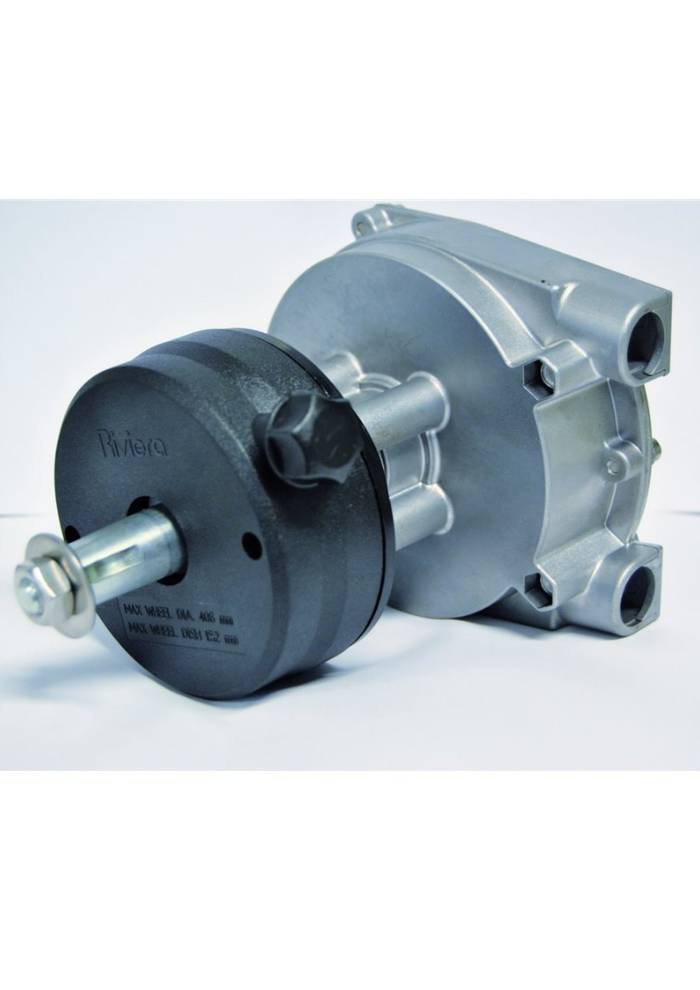

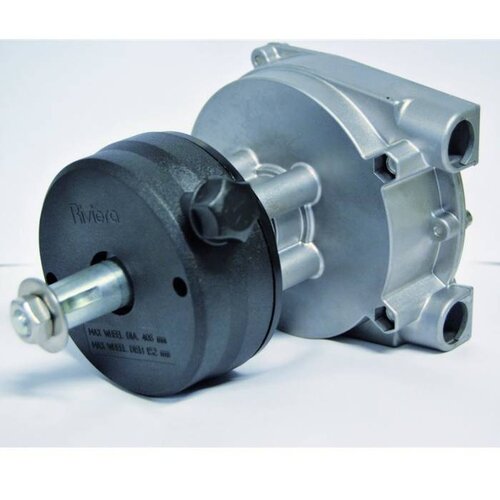

Information about the steering set KMDA100M

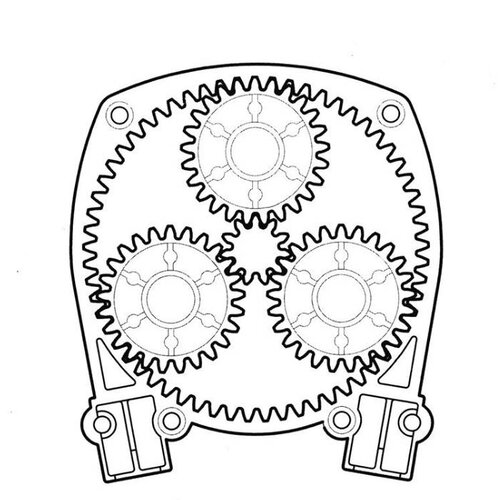

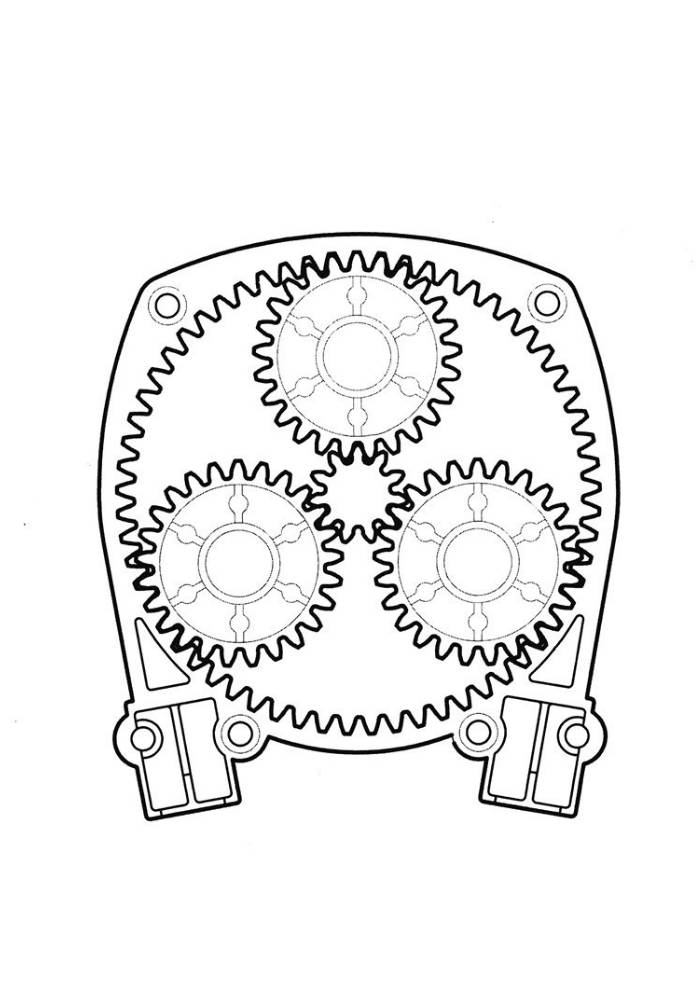

Riviera mechanical steering KMDA100M in metal as well use a Planetary Gear Design. A Planetary Gear Design has three satellite gears that rotate on their axis and at the same time rotate around the central helm axis.
This allows for equal distribution of engine torque over three points of the central gear, dividing and balancing the system loads. The benefits of this special design are increased system longevity, increased efficiency and less engine feedback compared to single pinion gear helms.

informatie over de Riviera stuurset SG04

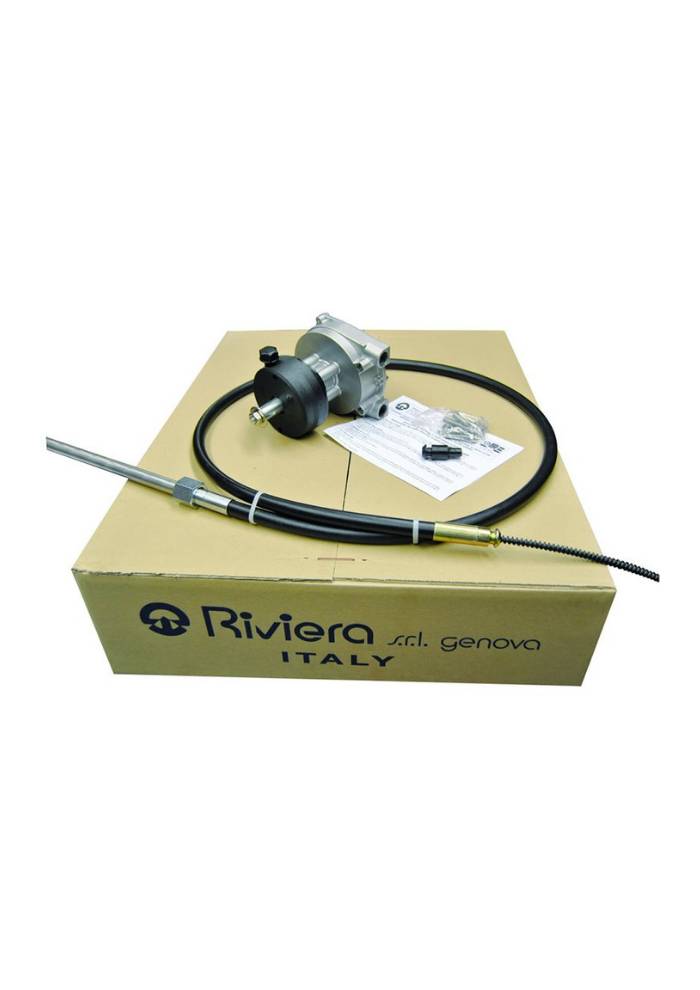

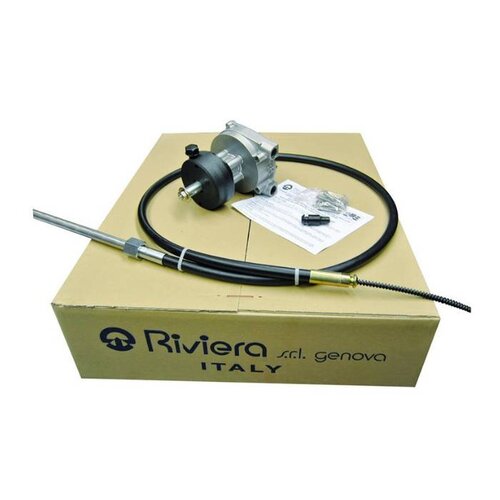

  • High-quality steering system set with KSG04 steering box and cable.
  • Planetary wheelhouse with professional teeth (see image) for even smoother and controlled steering movement
  • Installation: installation
  • Cable flange: Quick Connect (See photo)
  • Cable diameter: 16 mm
  • Stroke: 224 mm

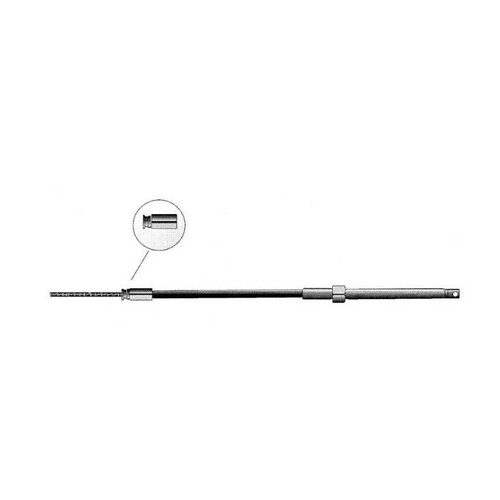

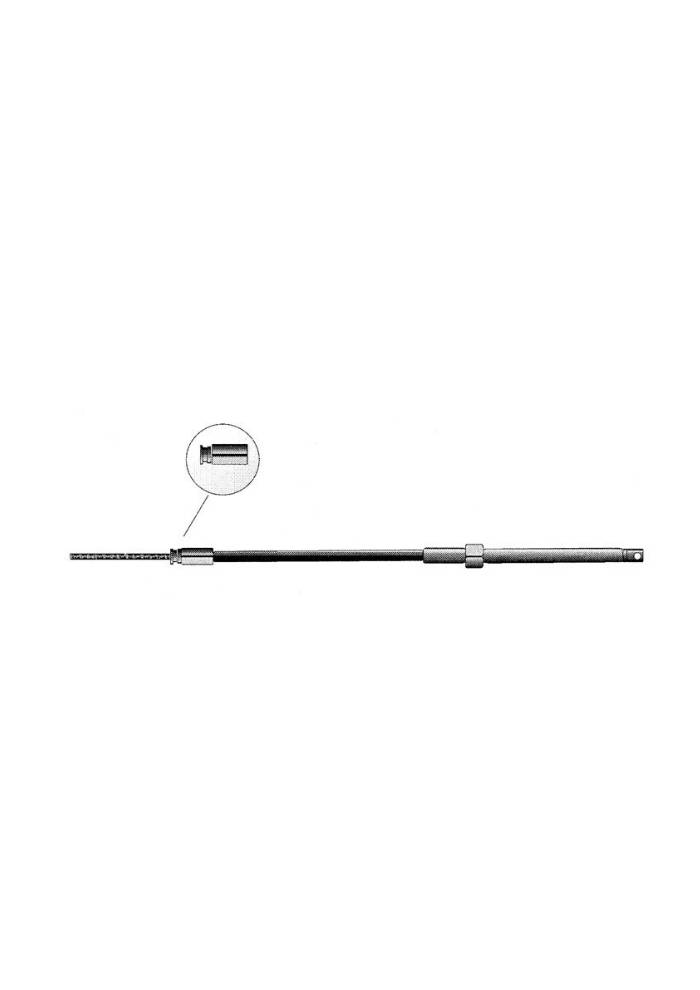

  • Stainless steel retractable cable rod (motor side)
  • Bending radius 200 mm
  • Motor power: more than 40 kW
  • For boat length up to 10.5 meters (35 ft)
  • Corrosion-resistant material.
  • Eight optional rudder positions for easy control cable installation
  • Certification CE
  • type N.Dip 06801 / GE
  • In accordance with ISO 8848
