PUMP
Type

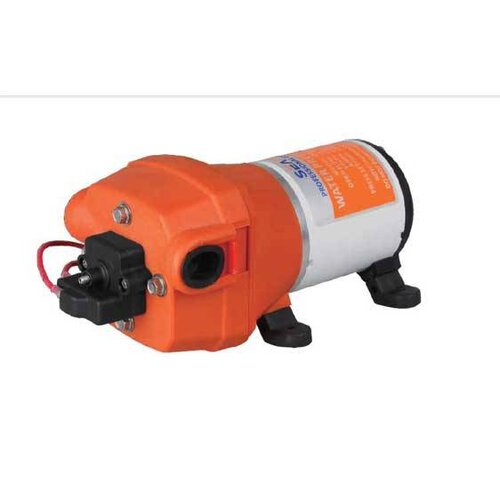

4 chamber positive displacement diaphragm pump, self priming, capable
of being run dry.
Mode
demand
Liquid Temperature
140°F (60°C) Max.
Priming Capabilities
6 feet (1.8 m) suction lift
Max Pressure
40 PSI (2.8 bar)
Inlet/Outlet Ports
Quick Attach
Weight
4.0 lbs (1.80 kg
MOTOR
Duty Cycle
Intermittent
Leads
16 AWG, 4.5" long with
2-Pin connector/Leads
Model | Switch | GPM/LPM | PSI/BAR | Max Draw (A) |
Valves | Diaphragm | Ports | Voltage |
Wire |
SFDP1-027-017-41 | Demand | 2.7/10.0 | 17/1.2 | 4.5 | EPDM | Santoprene | Quick Attach | 12V | 2-Pin/Leads |
SFDP1-033-035-41 | Demand | 2.7/10.0 | 17/1.2 | 8.0 | EPDM | Santoprene | Quick Attach | 12V | 2-Pin/Leads |
